Installation [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL KNOCK CONTROL SENSOR

    HINT:

    Perform "Inspection After Repair" after replacing the knock control sensor.

    Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]

    1. Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

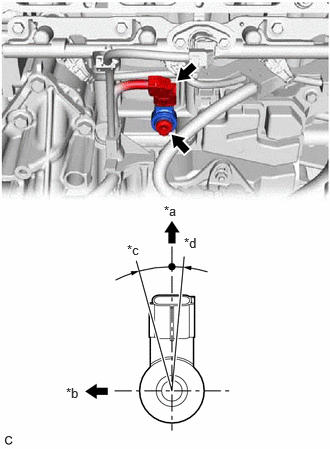

      GTY757678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Top
      *b Right of Vehicle
      *c 15°
      *d 5°
      NOTE:
      • If the knock control sensor has been struck or dropped, replace it.
      • Make sure that the knock control sensor is in the correct position.
    2. Connect the knock control sensor connector.
  2. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [12/2019 - 10/2021] , or refer to INSTALLATION [10/2021 - ]

  3. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing the knock control sensor.

      Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]
