Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

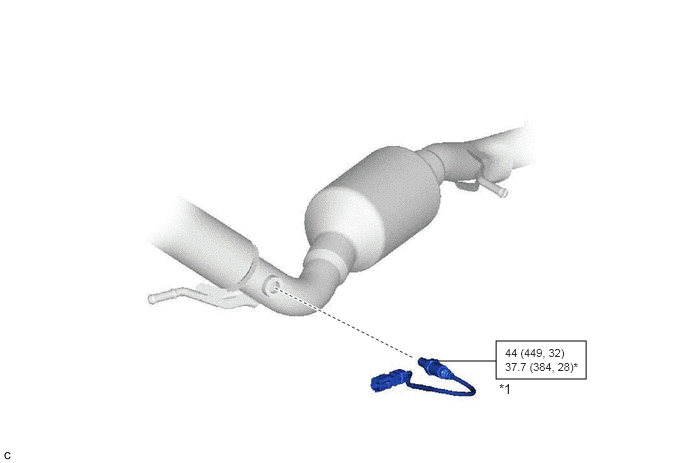

Fig 1: Air Fuel Ratio Sensor (For Sensor 2) Replacement Components With Torque Specifications
GTY910413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
