Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHIELD SEAL FRONT RH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

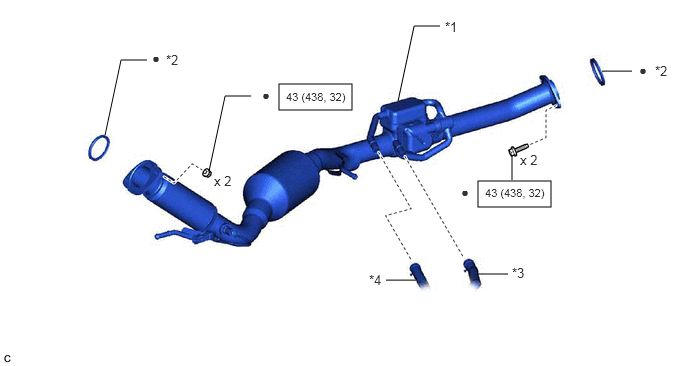

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | GASKET |
| *3 | OUTLET HEATER WATER HOSE D | *4 | INLET HEATER WATER HOSE D |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

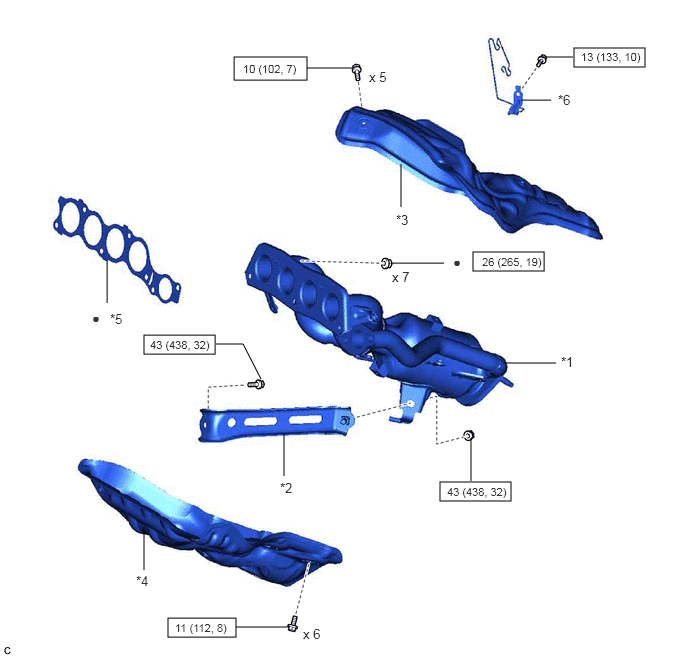

Fig 4: Exhaust Manifold Replacement Components With Torque Specifications [12/2019 - 10/2022] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST MANIFOLD (TWC: Front Catalyst) | *2 | MANIFOLD STAY |
| *3 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *4 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 | EXHAUST MANIFOLD TO HEAD GASKET | *6 | WIRE HARNESS CLAMP BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
