Components [10/2022 - ]
WARNING: This page is about a different variant/trim than selected.

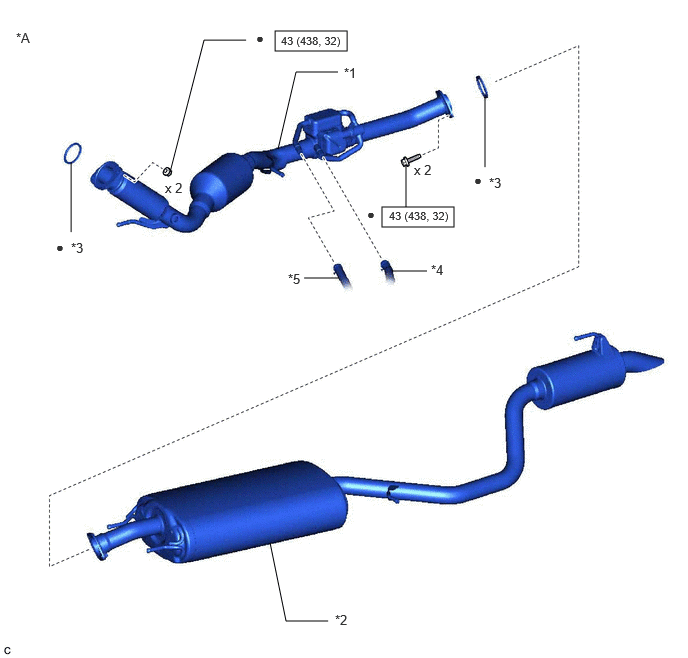

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Exhaust Heat Recirculation System | - | - |
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | TAIL EXHAUST PIPE ASSEMBLY |
| *3 | GASKET | *4 | OUTLET HEATER WATER HOSE D |
| *5 | INLET HEATER WATER HOSE D | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

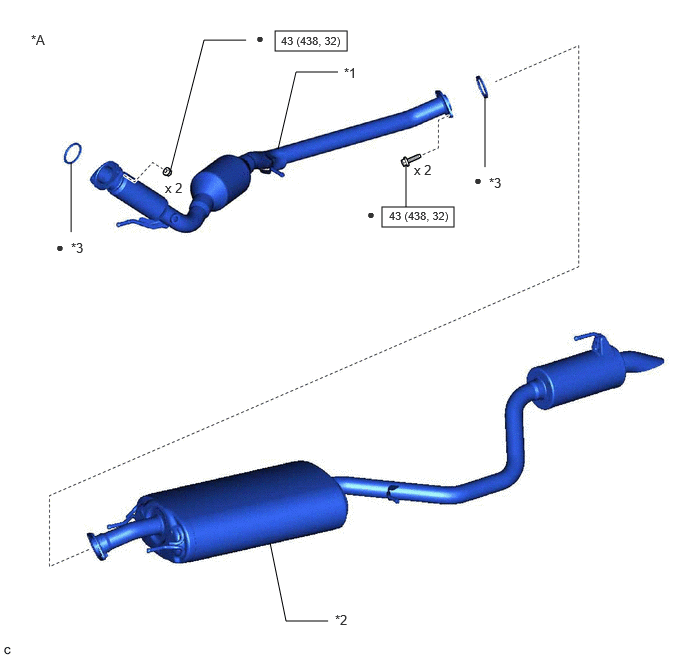

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Exhaust Heat Recirculation System | - | - |
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | TAIL EXHAUST PIPE ASSEMBLY |
| *3 | GASKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
