Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Panoramic View Monitor System - Diagnostic Codes & Symptom Tests
>>
Panoramic View Monitor System
>>
Image from Camera for Panoramic View Monitor is Abnormal [10/2022 - ]
>>
Wiring Diagram

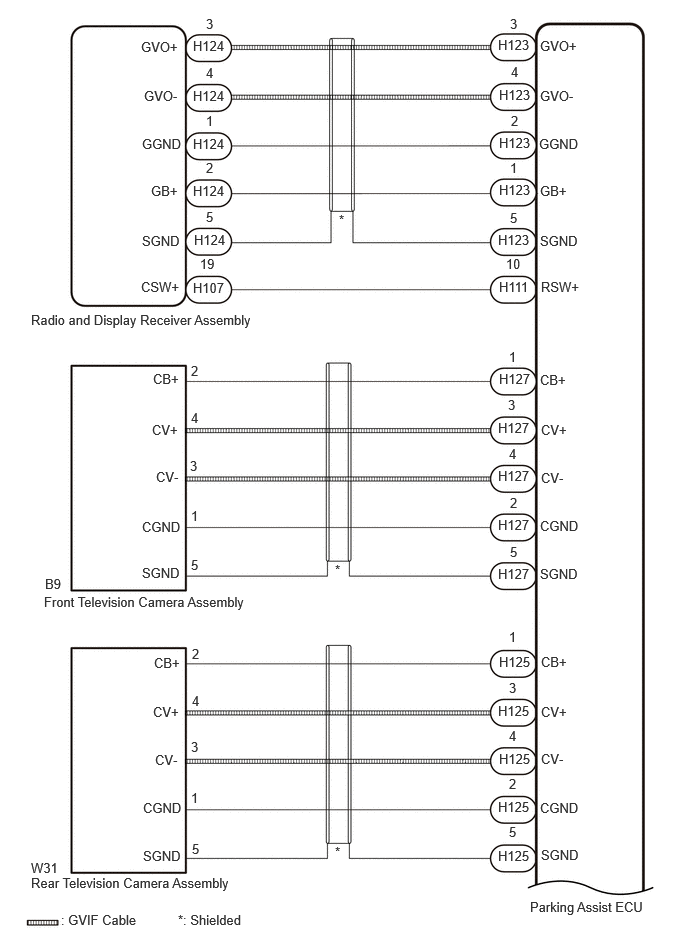

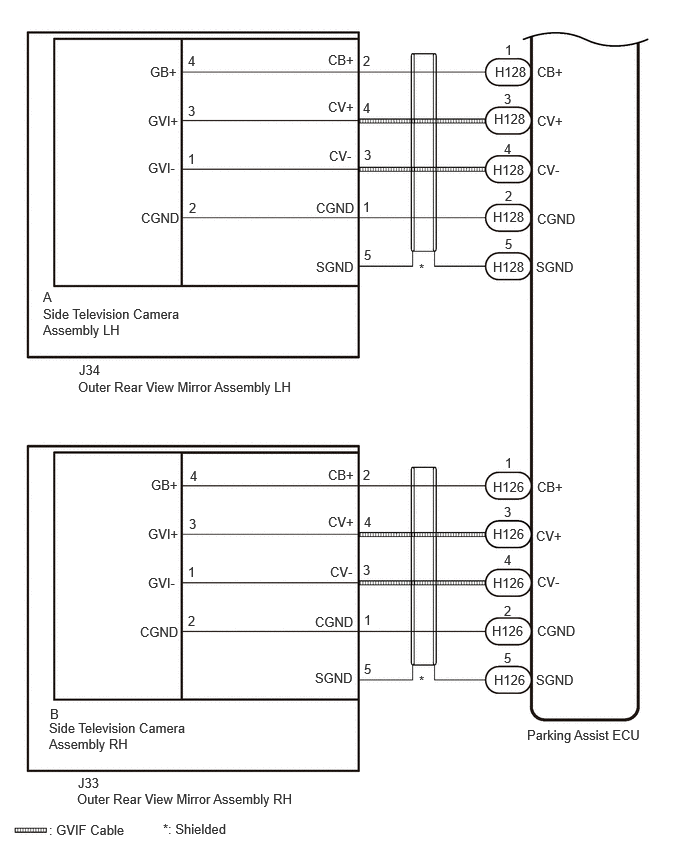

Image from Camera for Panoramic View Monitor is Abnormal [10/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
