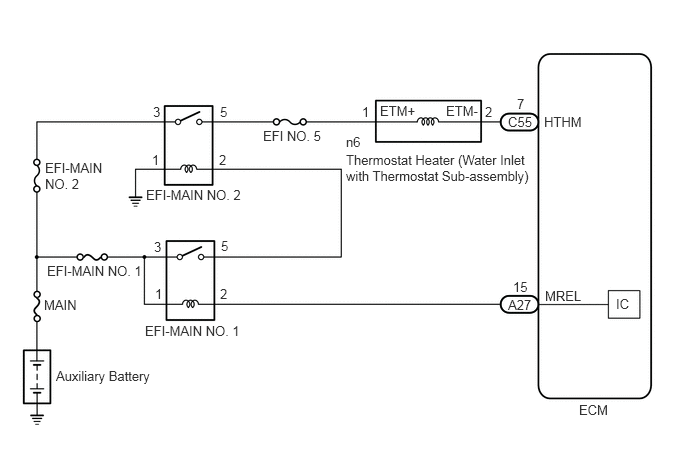

DTC P0597-12: Thermostat Heater Control Circuit Short to Battery [12/2019 - 10/2021]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY923518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
