DTC P059F-73: Active Grille Air Shutter "A" Actuator Stuck Closed; DTC P05A0-72: Active Grille Air Shutter "A" Actuator Stuck Open [12/2019 - 10/2021]: Description

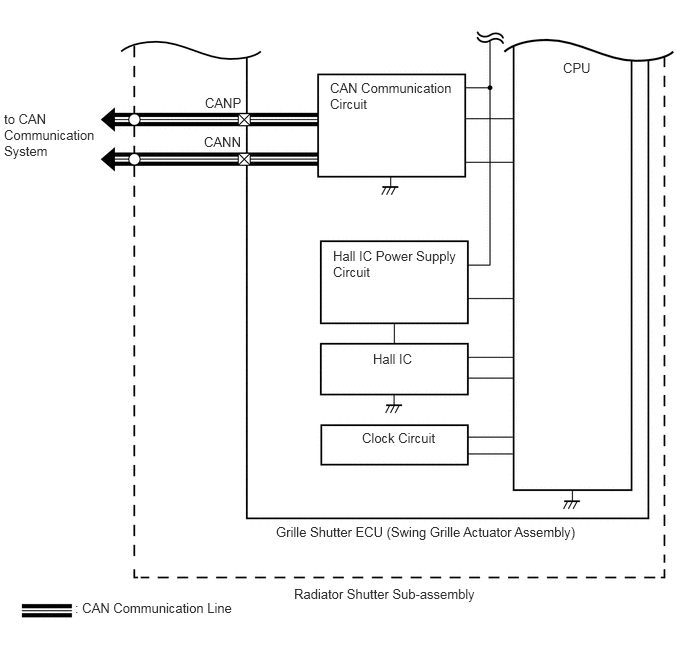

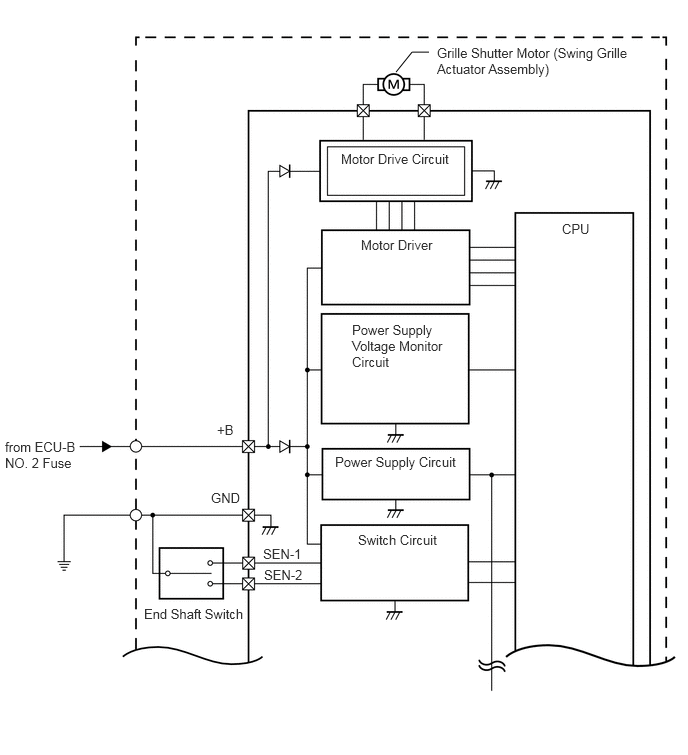

The grille shutter system is composed of the radiator shutter sub-assembly and grille shutter ECU (swing grille actuator assembly).
When the certain vehicle conditions are met, the grille shutter system operates the swing grille actuator assembly to open and close the radiator shutter sub-assembly and control the volume of air flowing through the radiator assembly into the engine compartment. This results in increased thermal efficiency and increased fuel economy due to reduced aerodynamic drag. This control is performed based on signals received via CAN communication: vehicle speed signal, engine coolant temperature signal, hybrid inverter coolant temperature signal, ambient temperature signal and refrigerant pressure.
If the grille shutter ECU (swing grille actuator assembly) detects a malfunction in itself or any of the mechanical components of the grille shutter system, it will output a malfunction signal to the ECM and the ECM will store a DTC.
| Control | Description |
|---|---|
| Closing Operation Control | The grille shutter closes when certain conditions related to the vehicle speed, engine coolant temperature, inverter coolant temperature, ambient temperature and refrigerant pressure are met. |
| Opening Operation Control | The grille shutter opens when certain conditions related to the vehicle speed, engine coolant temperature, inverter coolant temperature, ambient temperature and refrigerant pressure are met. |
| Ignition Switch Off-linked Opening Operation Control | Opens the grille shutter when the ignition switch is turned off in order to prevent the grille shutter from becoming stuck closed while the vehicle is stopped. |
| Ignition Switch ON Closing/Opening Operation | If the detection conditions of a DTC are met during a trip, the next time the ignition switch is turned to ON, a grille shutter opening and closing operation will be performed in order to judge if the malfunction still exists. |
| Winter Control Mode | Stops the grille shutter at a position other than the fully closed position and suspends grille shutter operation in order to prevent it from becoming stuck closed when the ambient temperature is 5°C (41°F) or lower. Winter control mode is canceled when the ambient temperature becomes 10°C (50°F) or higher. |
| Retry Operation | If a mechanical malfunction is detected during a grille shutter operation, the operation will be attempted again. |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P059F-73 | Active Grille Air Shutter "A" Actuator Stuck Closed | All of the following conditions are met and the ECM receives a malfunction signal 17 times* (2 trip detection logic):
|
|
Comes on | DTC stored | SAE Code: P059F |
| P05A0-72 | Active Grille Air Shutter "A" Actuator Stuck Open | All of the following conditions are met and the ECM receives a malfunction signal 17 times* (2 trip detection logic):
|
|
Comes on | DTC stored | SAE Code: P05A0 |
HINT:
*: For every 65 ms that the ECM receives a grille shutter system malfunction signal from the grille shutter ECU (swing grille actuator assembly) the ECM determines it has received the signal 1 time. If the ECM determines the malfunction signal has been received 17 consecutive times (the signal is received for approximately 1 second continuously), it will store a DTC.
