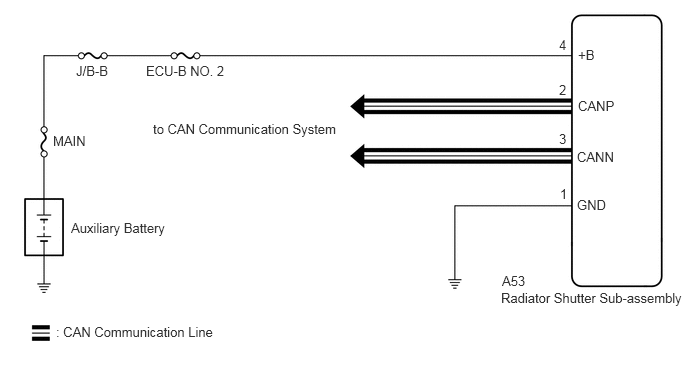

DTC P059F-73: Active Grille Air Shutter "A" Actuator Stuck Closed; DTC P05A0-72: Active Grille Air Shutter "A" Actuator Stuck Open [12/2019 - 10/2021]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY939084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
