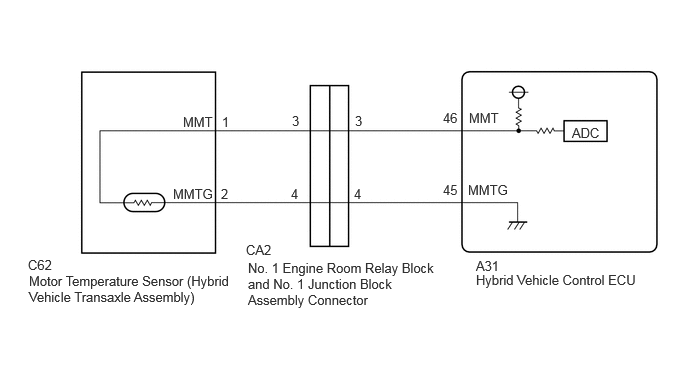

DTC P0A2A-11: Drive Motor "A" Temperature Sensor Circuit Short to Ground; DTC P0A2A-15: Drive Motor "A" Temperature Sensor Circuit Short to Auxiliary Battery or Open [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY993893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
