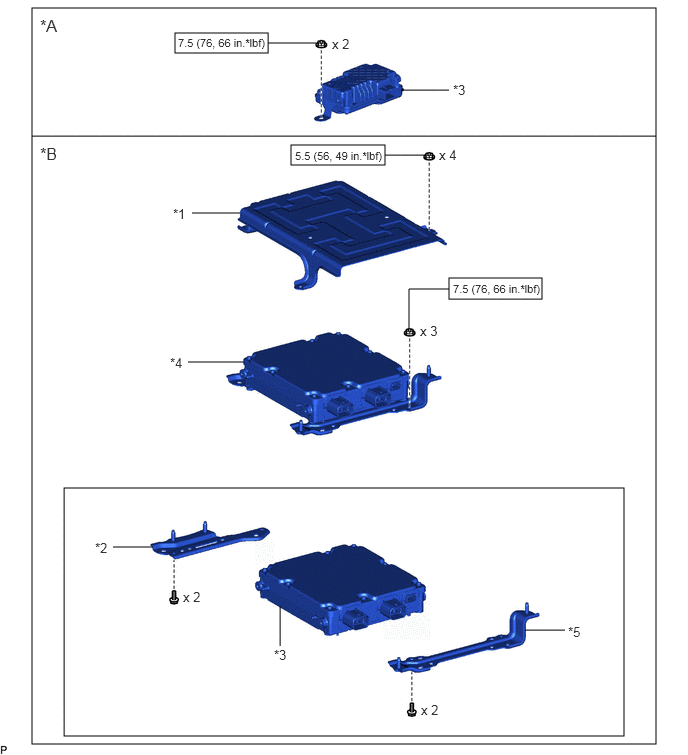

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Gasoline Model | *B | for HV Mode |
| *1 | INVERTER UPPER COVER | *2 | NO. 2 VOLTAGE INVERTER BRACKET |
| *3 | VOLTAGE INVERTER ASSEMBLY | *4 | VOLTAGE INVERTER ASSEMBLY WITH BRACKET |
| *5 | VOLTAGE INVERTER BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
