Components [12/2019 - ]

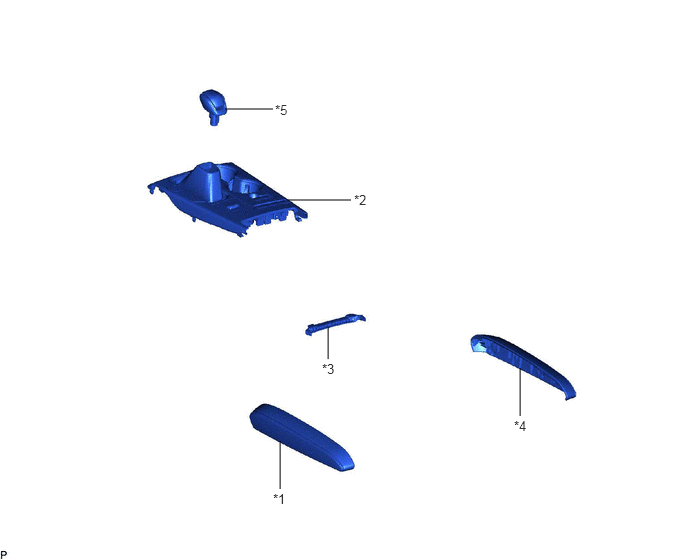

Fig 1: Center Power Outlet Socket (For Console Box) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CONSOLE BOX CUSHION	*2	CONSOLE PANEL SUB-ASSEMBLY
*3	FRONT CONSOLE BOX COVER	*4	NO. 2 CONSOLE BOX CUSHION
*5	SHIFT LEVER KNOB SUB-ASSEMBLY	-	-

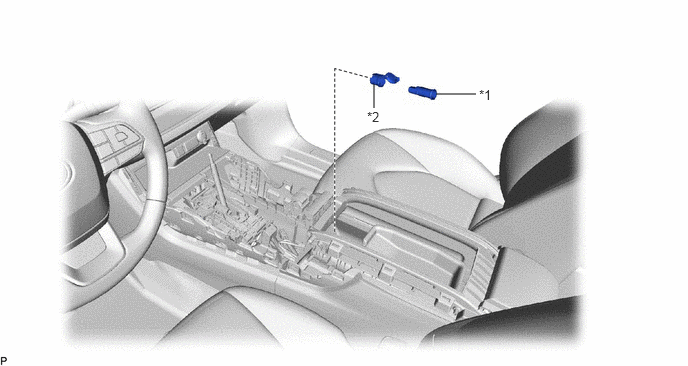

Fig 2: Center Power Outlet Socket (For Console Box) Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 2 POWER OUTLET SOCKET ASSEMBLY	*2	NO. 2 POWER OUTLET SOCKET COVER
