Inspection [12/2019 - ]: Procedure

  1. INSPECT NO. 3 POWER OUTLET SOCKET ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

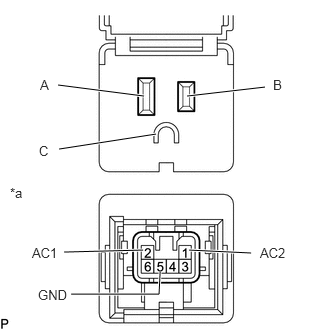

      GTY842824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 3 Power Outlet Socket Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A - 1 (AC2) Always Below 1 Ω
      B - 2 (AC1) Always Below 1 Ω
      C - 5 (GND) Always Below 1 Ω
      1 (AC2) - 2 (AC1) Always 10 kΩ or higher
      1 (AC2) - 5 (GND) Always 10 kΩ or higher
      2 (AC1) - 5 (GND) Always 10 kΩ or higher

      If the result is not as specified, replace the No. 3 power outlet socket assembly.
