Components [10/2022 - ]

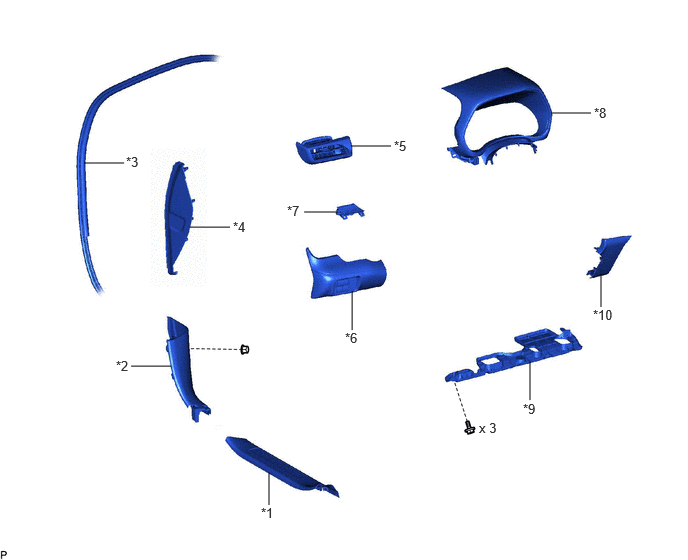

Fig 1: Wireless Charger Assembly Replacement Components [10/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR SCUFF PLATE LH	*2	COWL SIDE TRIM SUB-ASSEMBLY LH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*4	INSTRUMENT PANEL FINISH END PANEL LH
*5	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY	*6	INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*7	TRIP SWITCH	*8	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*9	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*10	NO. 1 SWITCH HOLE BASE

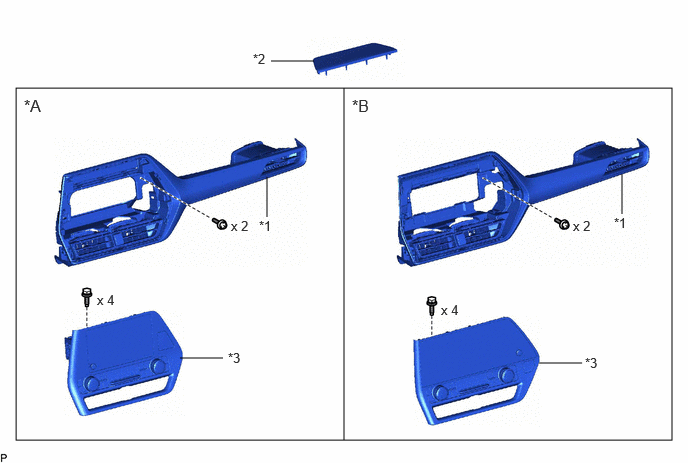

Fig 2: Wireless Charger Assembly Replacement Components [10/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 8 Inch Display	*B	for 12.3 Inch Display
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*2	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*3	RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL	-	-

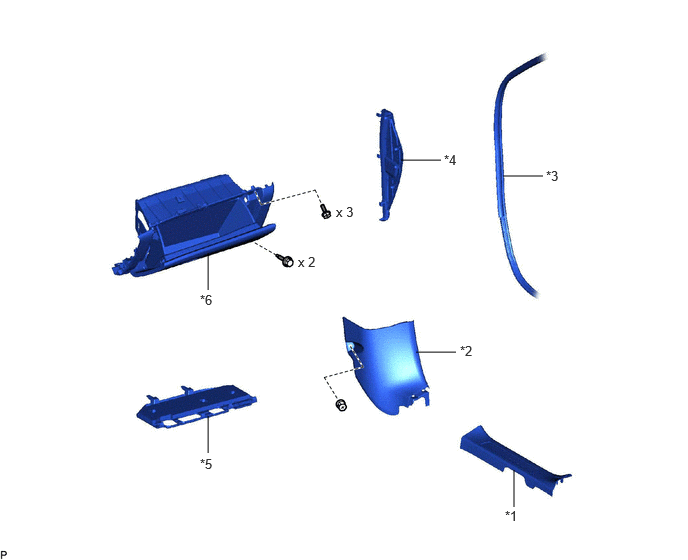

Fig 3: Wireless Charger Assembly Replacement Components [10/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT DOOR SCUFF PLATE RH	*2	COWL SIDE TRIM SUB-ASSEMBLY RH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*4	INSTRUMENT PANEL FINISH END PANEL RH
*5	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*6	LOWER INSTRUMENT PANEL SUB-ASSEMBLY

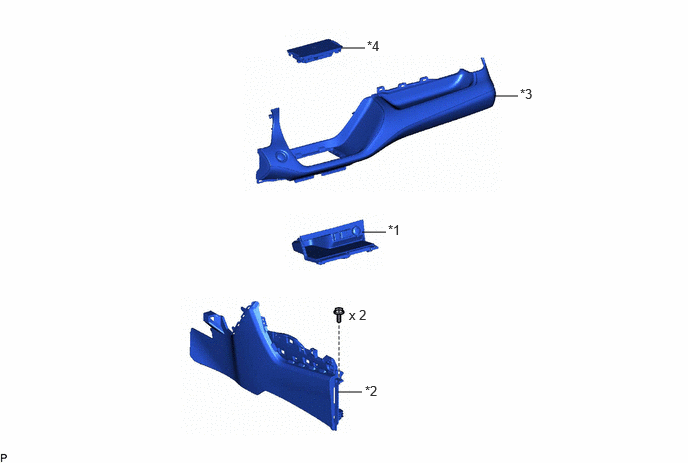

Fig 4: Wireless Charger Assembly Replacement Components [10/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	*2	FRONT CONSOLE BOX INSERT
*3	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT	*4	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
