Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

    Refer to DISASSEMBLY [12/2019 - 10/2022]

  3. REMOVE WIRELESS CHARGER ASSEMBLY

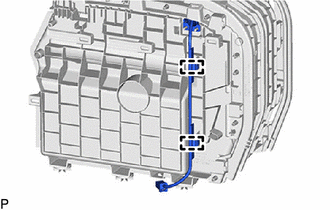

    1. Disengage the 2 clamps.
      GTY992101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

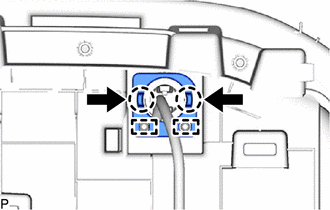

    2. While pushing the tabs of the pivot hinge as shown in the illustration, disengage the 2 claws and 2 guides.
      GTY992098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

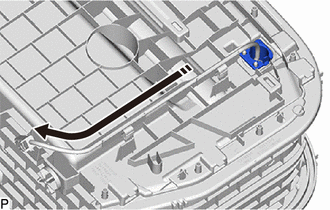

    3. Remove the pivot hinge as shown in the illustration.
      GTY992068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the 2 screws.
      GTY992095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

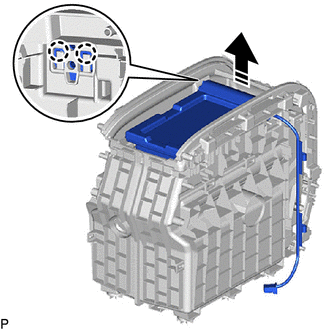

    5. Disengage the 2 claws as shown in the illustration to remove the wireless charger assembly.
      GTY992437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE REAR CONSOLE BOX WIRE

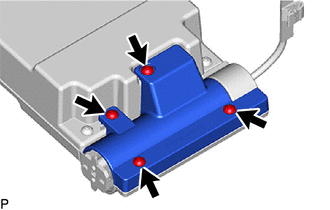

    1. Using a T20H "TORX" driver, remove the "TORX" 4 screws and torque cover.
      GTY992116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

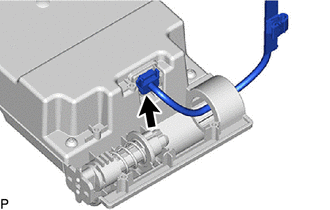

    2. Disconnect the connector to remove the rear console box wire.
      GTY992114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
