Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL REAR CONSOLE BOX WIRE
    1. Connect the connector.
    2. Using a T20H "TORX" driver, install the torque cover with the 4 "TORX" screws.
  2. INSTALL WIRELESS CHARGER ASSEMBLY

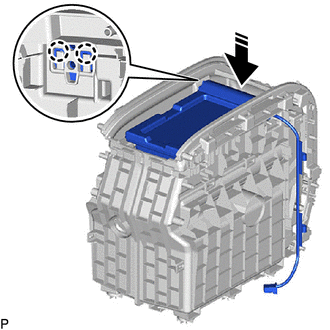

    1. Engage the 2 claws to temporarily install the wireless charger assembly as shown in the illustration.
      GTY992976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

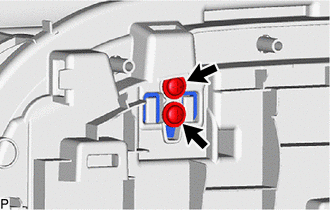

    2. Install the 2 screws.
      GTY992095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

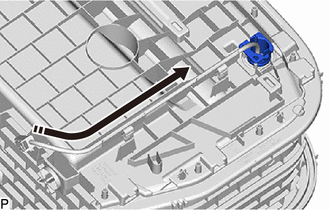

    3. Temporarily install the pivot hinge as shown in the illustration.
      GTY992046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

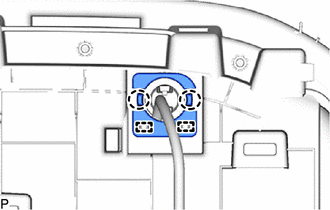

    4. Engage the 2 claws and 2 guides to install the pivot hinge.
      GTY992097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 clamps.
  3. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

    Refer to REASSEMBLY [12/2019 - 10/2022]

  4. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]
