Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY SERVICE HOLE COVER | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Rear Seat Entertainment System | *B | w/ Rear Seat Entertainment System |
| *1 | REAR CONSOLE LOWER BOX | *2 | NO. 2 CONSOLE BOX HOLE COVER |

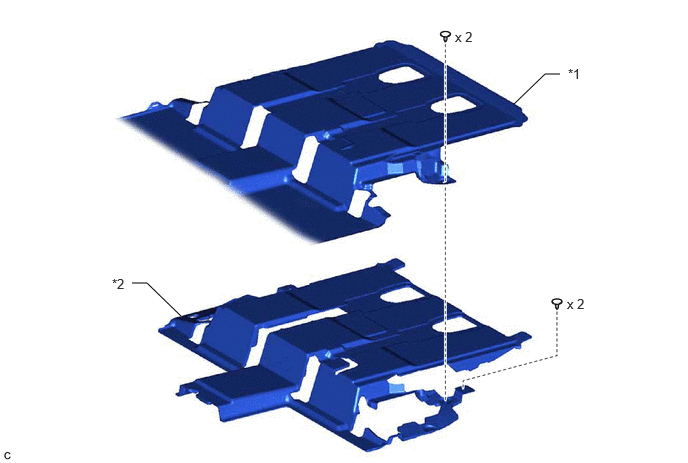

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY |
| *5 | REAR FLOOR SERVICE HOLE COVER | *6 | NO. 1 FUEL TUBE CLAMP |
| *7 | TUBE JOINT CLIP | *8 | FUEL SUCTION TUBE SET GASKET |
| *9 | FUEL TANK WIRE | *10 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

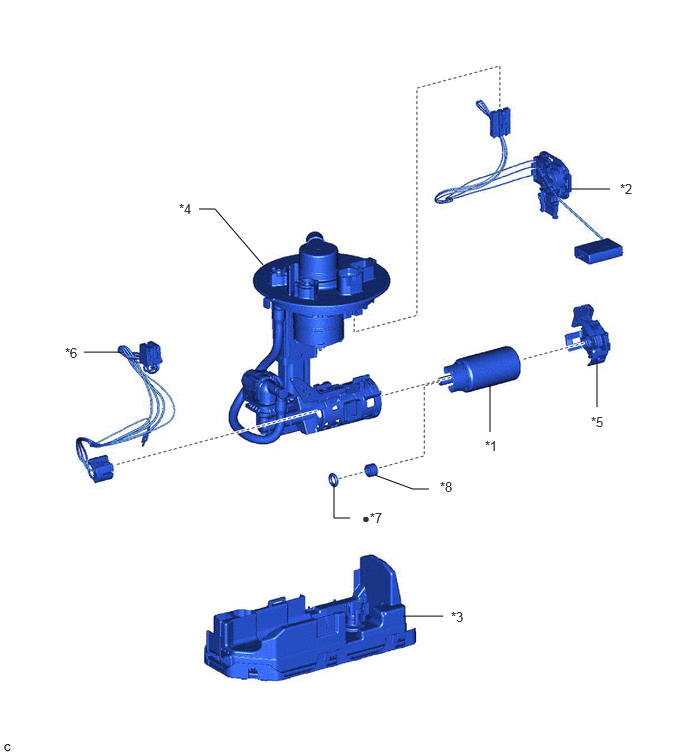

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUB-TANK SUB-ASSEMBLY | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL SUCTION SUPPORT | *6 | FUEL PUMP HARNESS |
| *7 | O-RING | *8 | FUEL PUMP SPACER |
| • | Non-reusable part | - | - |
