Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY SERVICE HOLE COVER | - | - |

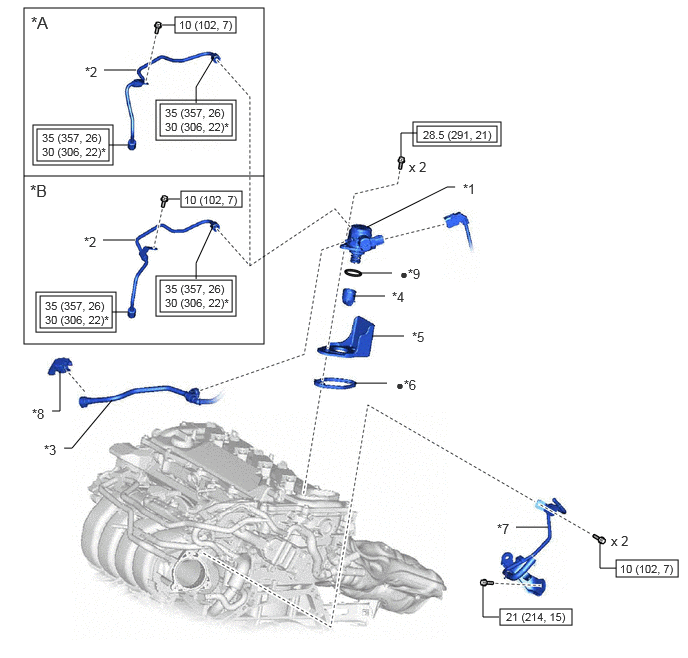

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for EGR Valve Bracket Connection Type | *B | for Cylinder Head Cover Sub-assembly Connection Type |
| *1 | FUEL PUMP ASSEMBLY | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP LIFTER ASSEMBLY |
| *5 | FUEL PUMP FLANGE | *6 | FUEL PUMP SPACER GASKET |
| *7 | NO. 2 WATER BY-PASS PIPE | *8 | FUEL PIPE CLAMP |
| *9 | O-RING | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with a union nut wrench | • | Non-reusable part |
