Components [10/2021 - ]
WARNING: This page is about a different variant/trim than selected.

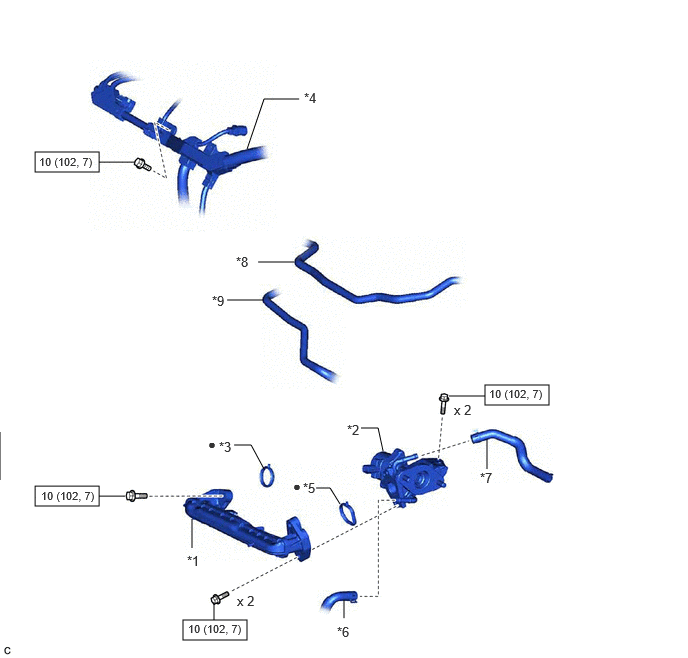

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 EGR PIPE SUB-ASSEMBLY | *2 | EGR VALVE ASSEMBLY |
| *3 | EGR INLET GASKET | *4 | ENGINE WIRE |
| *5 | EGR VALVE ADAPTER GASKET | *6 | NO. 8 WATER BY-PASS HOSE |
| *7 | NO. 4 WATER BY-PASS HOSE | *8 | NO. 1 FUEL VAPOR FEED HOSE |
| *9 | NO. 2 FUEL VAPOR FEED HOSE | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
