Components [10/2021 - ]

WARNING: This page is about a different variant/trim than selected.

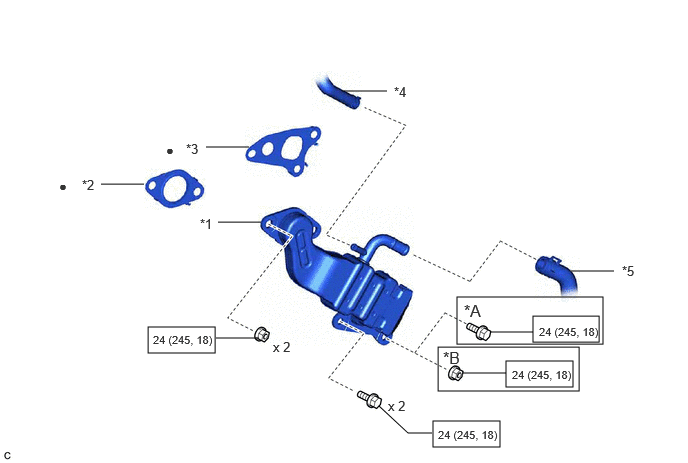

Fig 1: EGR Cooler Replacement Components With Torque Specifications [10/2021 - ]
GTY1106345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 EGR COOLER ASSEMBLY *2 EGR VALVE GASKET
*3 EGR COOLER GASKET *4 NO. 4 WATER BY-PASS HOSE
*5 NO. 3 WATER BY-PASS HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
