Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

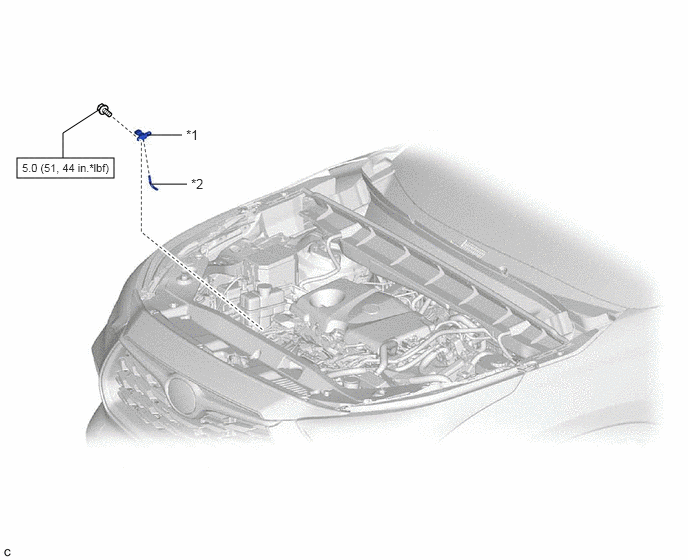

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications
GTY897595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) *2 VACUUM HOSE
N.m (kgf/cm, ft.lbf): Specified torque - -
