Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR COVER LH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

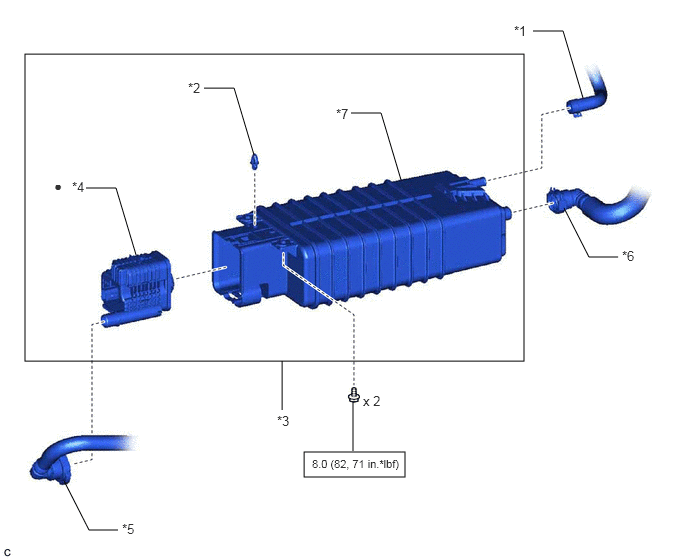

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL EMISSION HOSE | *2 | CHARCOAL CANISTER OUTLET GUIDE |
| *3 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *4 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *5 | NO. 7 FUEL TANK BREATHER TUBE | *6 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *7 | CHARCOAL CANISTER SUB-ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
