Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

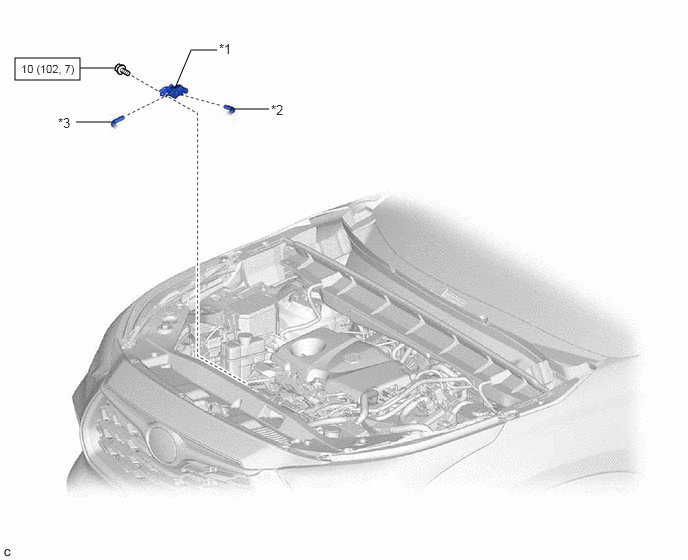

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY912028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PURGE VALVE (PURGE VSV) *2 NO. 1 FUEL VAPOR FEED HOSE
*3 NO. 2 FUEL VAPOR FEED HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
