Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

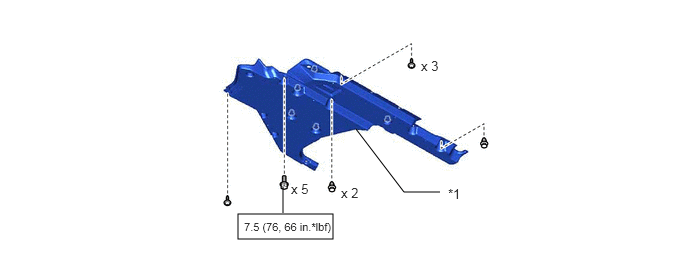

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR COVER LH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

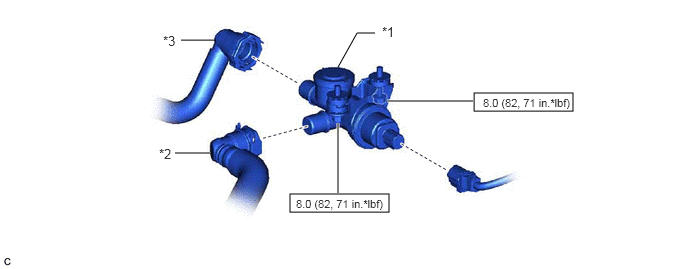

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL VAPOR CONTAINMENT VALVE (CLOSE TANK WITH BOLT VALVE ASSEMBLY) | *2 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *3 | FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
