On-Vehicle Inspection [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. Check the PCV valve (ventilation valve sub-assembly) operation.

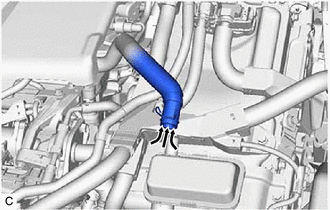

      GTY935524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Start the engine.

        Powertrain > Hybrid Control > Utility

        Tester Display
        Inspection Mode
      2. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose assembly.
      3. Check that air is sucked into the No. 2 ventilation hose.

        Standard

        Air is sucked into the No. 2 ventilation hose.

        If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).
