Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - ]

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

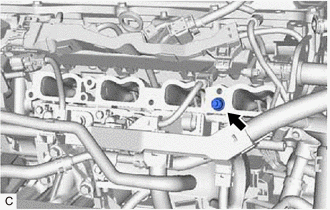

    1. Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly.
      GTY763919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
