Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

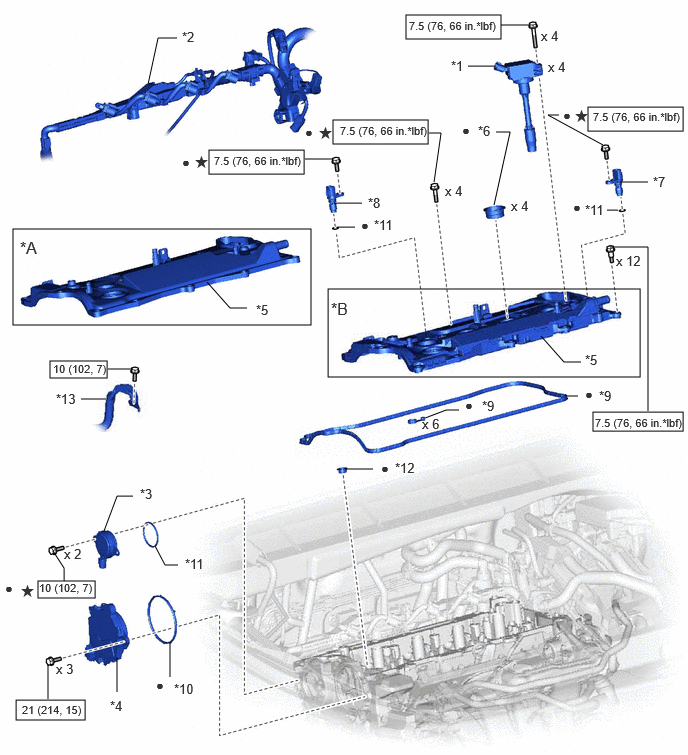

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | IGNITION COIL ASSEMBLY | *2 | ENGINE WIRE |
| *3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *4 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *5 | CYLINDER HEAD COVER SUB-ASSEMBLY | *6 | SPARK PLUG TUBE GASKET |
| *7 | CAMSHAFT POSITION SENSOR (for Intake Side) | *8 | CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *9 | CYLINDER HEAD COVER GASKET | *10 | CAM TIMING CONTROL MOTOR O-RING |
| *11 | O-RING | *12 | CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *13 | NO. 2 EARTH WIRE | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| * | Precoated part | - | - |

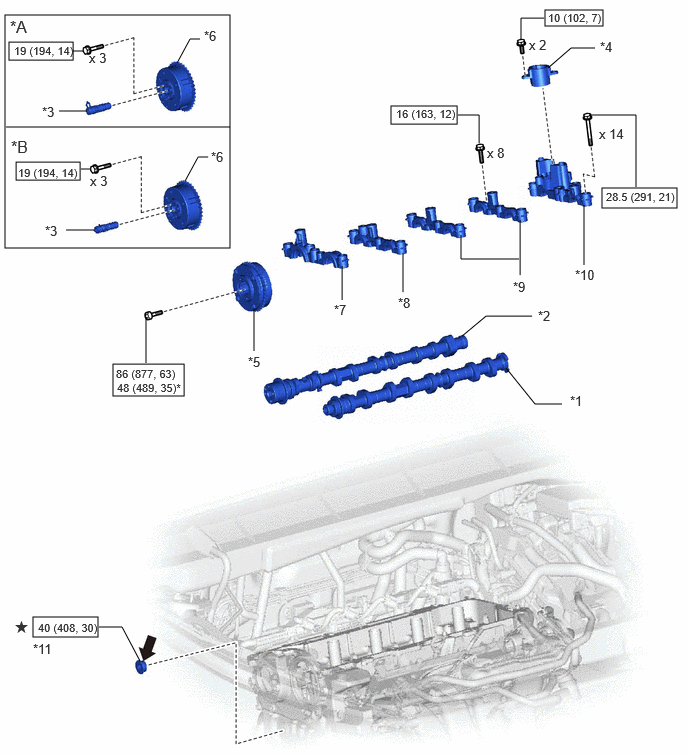

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | CAMSHAFT | *2 | NO. 2 CAMSHAFT |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) | *4 | FUEL PUMP LIFTER GUIDE |
| *5 | CAMSHAFT TIMING GEAR ASSEMBLY | *6 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 | NO. 1 CAMSHAFT BEARING CAP | *8 | NO. 2 CAMSHAFT BEARING CAP |
| *9 | NO. 3 CAMSHAFT BEARING CAP | *10 | NO. 4 CAMSHAFT BEARING CAP |
| *11 | STRAIGHT SCREW PLUG | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | |
Adhesive 1324 |
| * | For use with SST | * | Precoated part |
