Components [10/2022 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (1 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | - | - |
| *1 | EXHAUST MANIFOLD (TWC: Front Catalyst) | *2 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *3 | MANIFOLD STAY | *4 | EXHAUST MANIFOLD TO HEAD GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (2 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type B | - | - |
| *1 | EXHAUST MANIFOLD (TWC: Front Catalyst) | *2 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *3 | MANIFOLD STAY | *4 | EXHAUST MANIFOLD TO HEAD GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

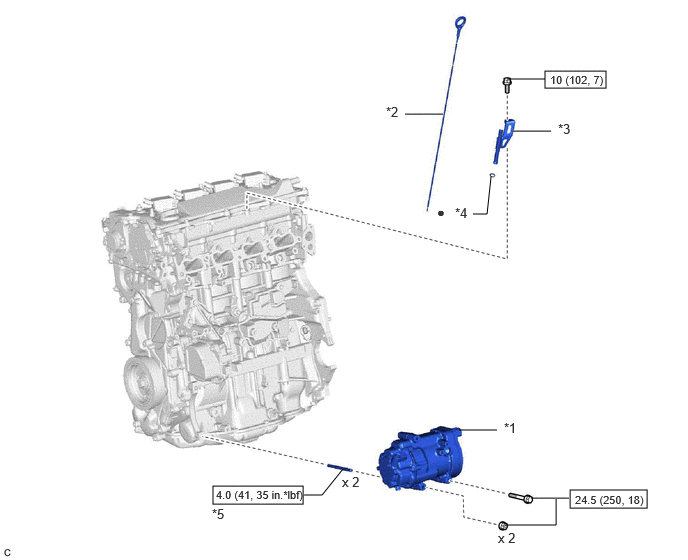

Fig 3: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (3 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COMPRESSOR WITH MOTOR ASSEMBLY | *2 | ENGINE OIL LEVEL DIPSTICK |
| *3 | ENGINE OIL LEVEL DIPSTICK GUIDE | *4 | O-RING |
| *5 | STUD BOLT | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 4: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (4 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | FUEL DELIVERY PIPE SUB-ASSEMBLY | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | INTAKE MANIFOLD | *4 | NO. 1 EGR PIPE SUB-ASSEMBLY |
| *5 | NO. 2 WATER BY-PASS PIPE | *6 | NO. 3 WATER BY-PASS PIPE |
| *7 | THROTTLE BODY GASKET | *8 | PORT FUEL INJECTOR ASSEMBLY |
| *9 | DIRECT FUEL INJECTOR ASSEMBLY | *10 | O-RING |
| *11 | INJECTOR VIBRATION INSULATOR | *12 | NO. 1 DELIVERY PIPE SPACER |
| *13 | NOZZLE HOLDER CLAMP | *14 | FUEL PIPE CLAMP |
| *15 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET | *16 | EGR VALVE ADAPTER GASKET |
| *17 | EGR INLET GASKET | *18 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *19 | FUEL PUMP FLANGE | *20 | FUEL PUMP SPACER GASKET |
| *21 | FUEL PUMP LIFTER ASSEMBLY | *22 | FUEL DELIVERY PIPE |
| *23 | NO. 3 FUEL INJECTOR BACK-UP RING | *24 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *25 | FUEL TUBE SUB-ASSEMBLY | *26 | C-RING |
| *27 | FUEL INJECTOR SEAL | *28 | NO. 5 ENGINE WIRE |
| *29 | STUD BOLT | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | • | Non-reusable part |

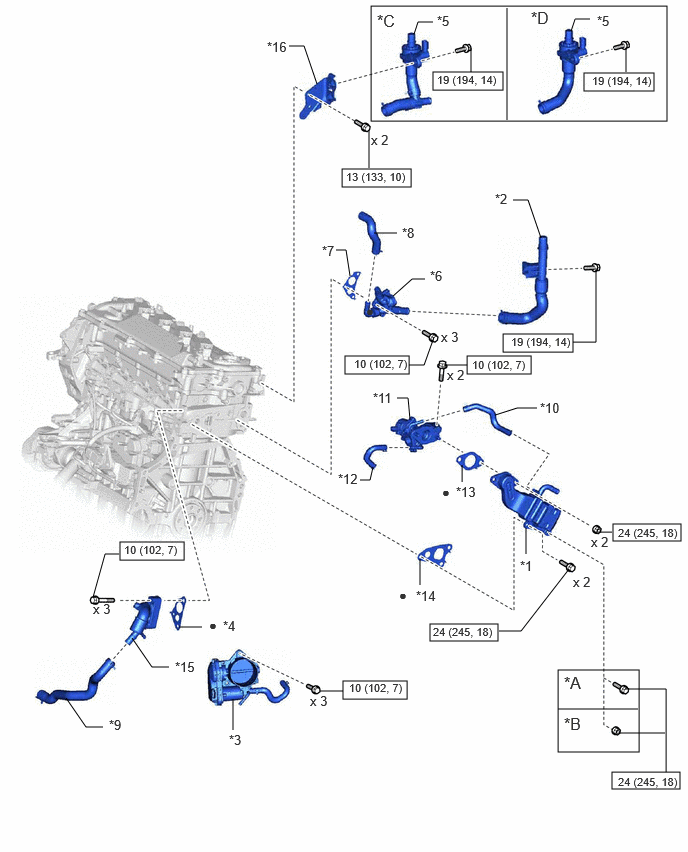

Fig 5: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (5 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | w/ Exhaust Heat Recirculation System | *D | w/o Exhaust Heat Recirculation System |
| *1 | EGR COOLER ASSEMBLY | *2 | NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | WATER OUTLET GASKET |
| *5 | FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) | *6 | WATER BY-PASS OUTLET |
| *7 | OUTLET WATER PIPE GASKET | *8 | NO. 3 WATER BY-PASS HOSE |
| *9 | NO. 7 WATER BY-PASS HOSE | *10 | NO. 4 WATER BY-PASS HOSE |
| *11 | EGR VALVE ASSEMBLY | *12 | NO. 8 WATER BY-PASS HOSE |
| *13 | EGR VALVE GASKET | *14 | EGR COOLER GASKET |
| *15 | WATER OUTLET | *16 | WATER HOSE CLAMP BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

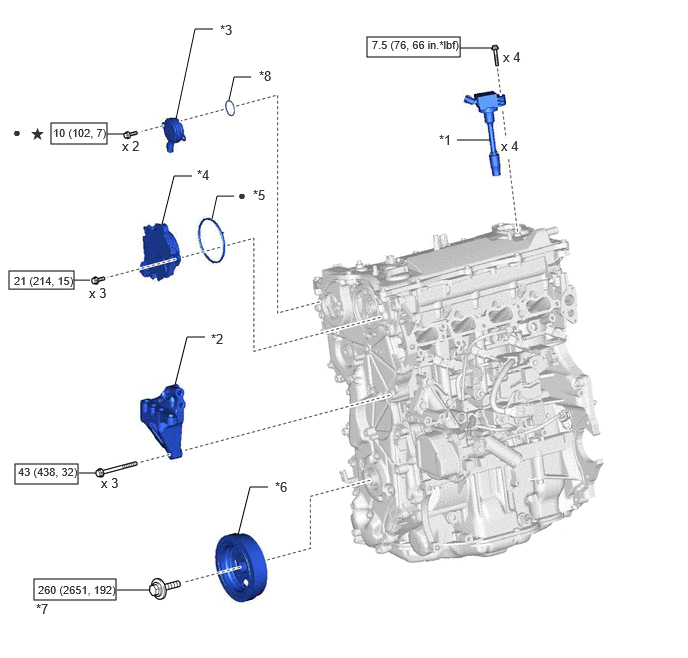

Fig 6: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (6 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | IGNITION COIL ASSEMBLY | *2 | ENGINE MOUNTING BRACKET RH |
| *3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *4 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *5 | CAM TIMING CONTROL MOTOR O-RING | *6 | CRANKSHAFT PULLEY ASSEMBLY |
| *7 | CRANKSHAFT PULLEY BOLT | *8 | O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| * | Precoated part | - | - |

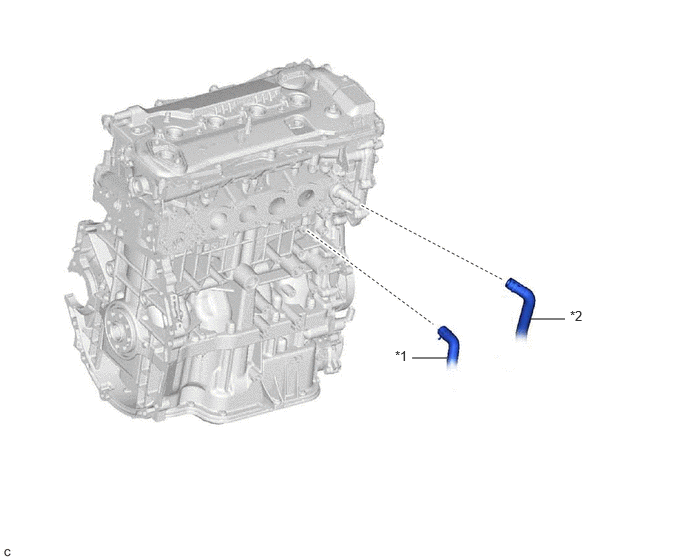

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 WATER BY-PASS HOSE | *2 | NO. 2 WATER BY-PASS HOSE |

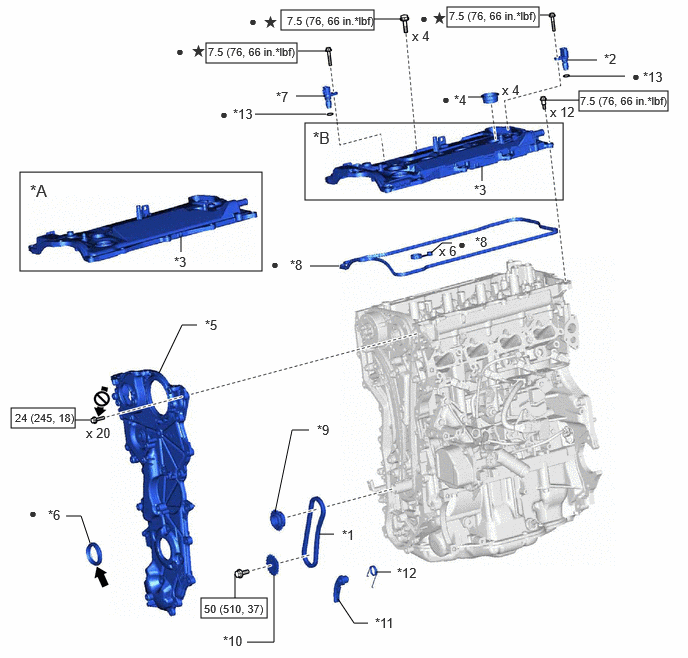

Fig 8: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (8 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | OIL PUMP DRIVE CHAIN SUB-ASSEMBLY | *2 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *3 | CYLINDER HEAD COVER SUB-ASSEMBLY | *4 | SPARK PLUG TUBE GASKET |
| *5 | NO. 2 TIMING CHAIN COVER ASSEMBLY | *6 | TIMING CHAIN COVER OIL SEAL |
| *7 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *8 | CYLINDER HEAD COVER GASKET |
| *9 | OIL PUMP DRIVE SPROCKET | *10 | OIL PUMP DRIVE SHAFT SPROCKET |
| *11 | CHAIN TENSIONER PLATE | *12 | CHAIN DAMPER SPRING |
| *13 | O-RING | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
|
MP grease | * | Precoated part |
|
Do not apply lubricants to the threaded parts | - | - |

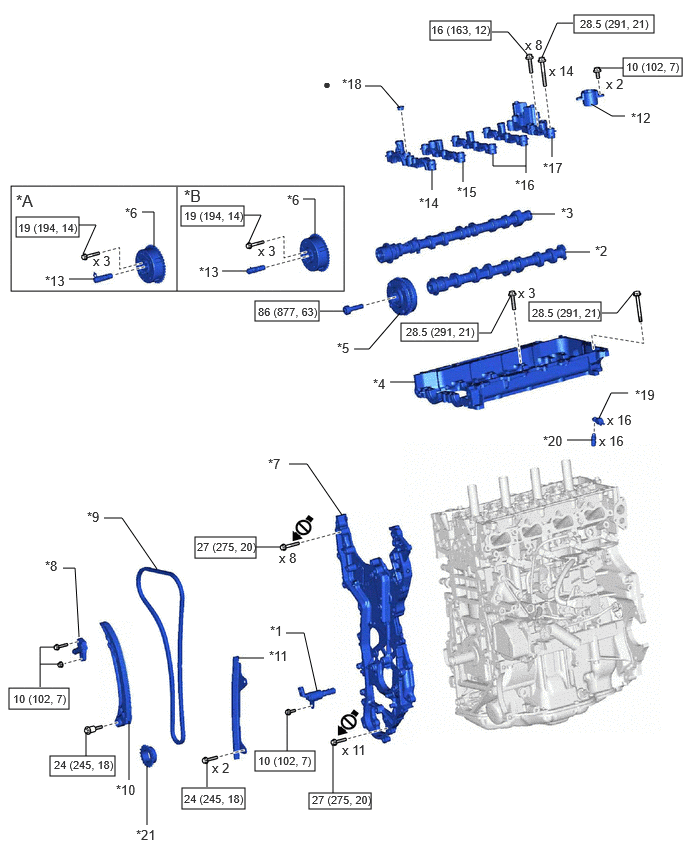

Fig 9: Cylinder Head Gasket Replacement Components With Torque Specifications [10/2022 - ] (9 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | OIL PRESSURE CONTROL VALVE ASSEMBLY | *2 | CAMSHAFT |
| *3 | NO. 2 CAMSHAFT | *4 | CAMSHAFT HOUSING SUB-ASSEMBLY |
| *5 | CAMSHAFT TIMING GEAR ASSEMBLY | *6 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 | TIMING CHAIN COVER ASSEMBLY | *8 | NO. 1 CHAIN TENSIONER ASSEMBLY |
| *9 | CHAIN SUB-ASSEMBLY | *10 | CHAIN TENSIONER SLIPPER |
| *11 | NO. 1 CHAIN VIBRATION DAMPER | *12 | FUEL PUMP LIFTER GUIDE |
| *13 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) | *14 | NO. 1 CAMSHAFT BEARING CAP |
| *15 | NO. 2 CAMSHAFT BEARING CAP | *16 | NO. 3 CAMSHAFT BEARING CAP |
| *17 | NO. 4 CAMSHAFT BEARING CAP | *18 | CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *19 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | *20 | VALVE LASH ADJUSTER ASSEMBLY |
| *21 | CRANKSHAFT TIMING SPROCKET | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
|
Do not apply lubricants to the threaded parts | - | - |

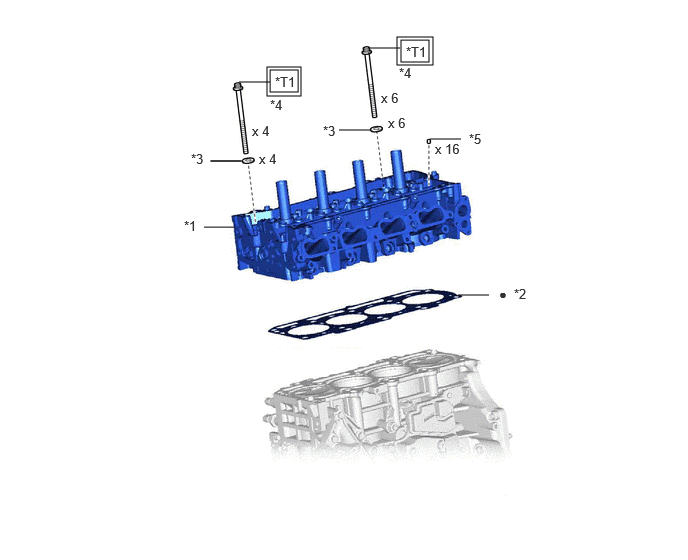

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CYLINDER HEAD SUB-ASSEMBLY | *2 | CYLINDER HEAD GASKET |
| *3 | PLATE WASHER | *4 | CYLINDER HEAD SET BOLT |
| *5 | VALVE STEM CAP | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
| *T1 | 1st: 90 (918, 66) 2nd: Turn 90° 3rd: Turn 90° |
- | - |
