Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

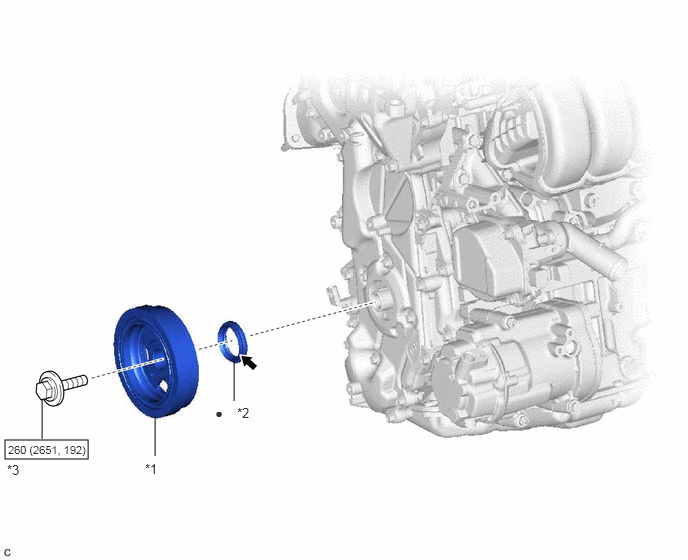

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications
GTY743930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY ASSEMBLY *2 TIMING CHAIN COVER OIL SEAL
*3 CRANKSHAFT PULLEY BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -
