Removal [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 22

  3. REMOVE TIMING CHAIN COVER OIL SEAL

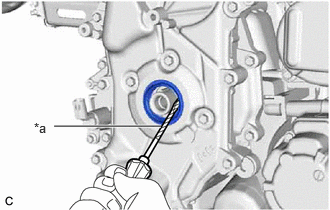

    1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.
      GTY745111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
