Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

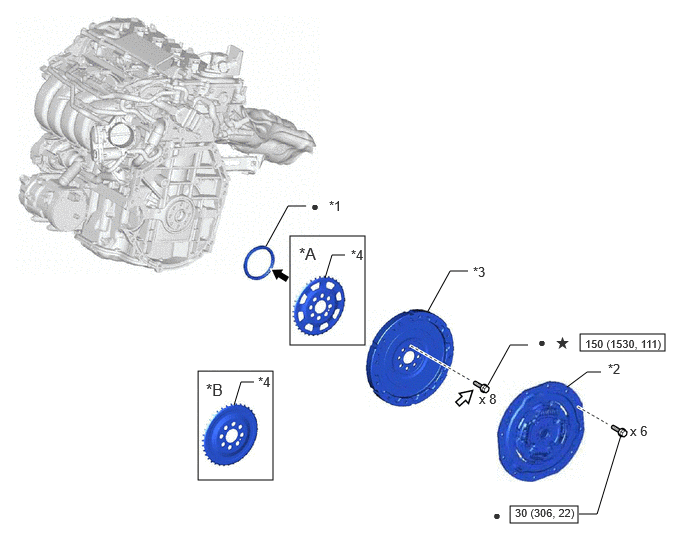

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | REAR ENGINE OIL SEAL | *2 | TRANSMISSION INPUT DAMPER ASSEMBLY |
| *3 | FLYWHEEL SUB-ASSEMBLY | *4 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
|
N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
|
MP grease | |
Adhesive 1324 |
| * | Precoated part | - | - |
