Components [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (1 Of 9)
GTY865521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER APRON SEAL LH *2 FRONT FENDER APRON SEAL RH
*3 FRONT WHEEL OPENING EXTENSION PAD LH *4 FRONT WHEEL OPENING EXTENSION PAD RH
*5 NO. 1 ENGINE UNDER COVER *6 NO. 2 ENGINE UNDER COVER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 2: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (2 Of 9)
GTY861034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER LOWER ABSORBER *2 NO. 2 FRONT BUMPER REINFORCEMENT
N*m (kgf*cm, ft.*lbf): Specified torque - -

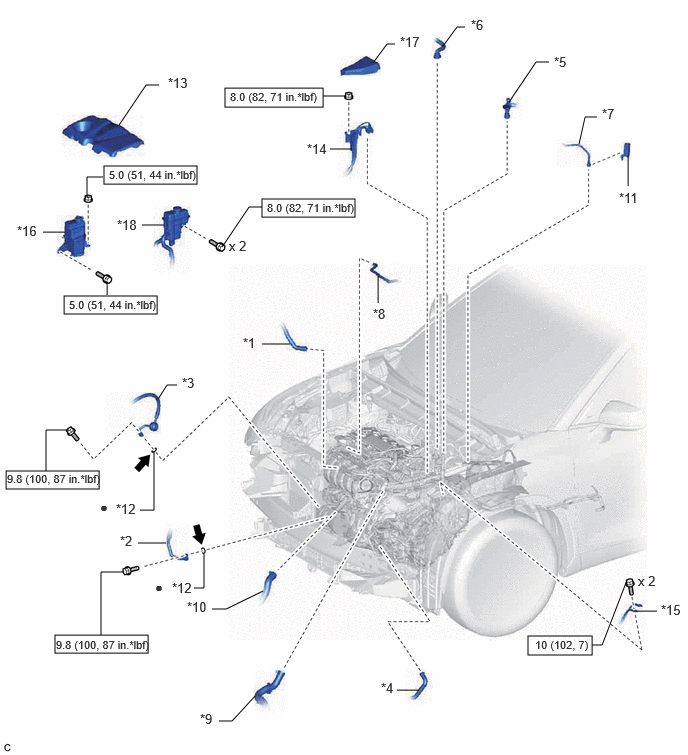

Fig 3: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (3 Of 9)
GTY1180781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 4 WATER BY-PASS HOSE *2 SUCTION HOSE SUB-ASSEMBLY
*3 DISCHARGE HOSE SUB-ASSEMBLY *4 NO. 5 INVERTER COOLING HOSE
*5 OUTLET HEATER WATER HOSE B *6 INLET HEATER WATER HOSE B
*7 FUEL TUBE SUB-ASSEMBLY *8 FUEL VAPOR FEED HOSE ASSEMBLY
*9 NO. 1 RADIATOR HOSE *10 NO. 2 RADIATOR HOSE
*11 NO. 1 FUEL PIPE CLAMP *12 O-RING
*13 NO. 1 ENGINE COVER SUB-ASSEMBLY *14 WIRE HARNESS
*15 EARTH WIRE *16 RADIATOR RESERVE TANK ASSEMBLY
*17 NO. 1 RELAY BLOCK COVER *18 INVERTER RESERVE TANK ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 11 or equivalent - -
Fig 4: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (4 Of 9)
GTY896508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FLOOR COVER LH *2 FRONT FLOOR COVER RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 5: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (5 Of 9)
GTY1108978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Exhaust Heat Recirculation System - -
*1 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) *2 GASKET
*3 OUTLET HEATER WATER HOSE D *4 INLET HEATER WATER HOSE D
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Fig 6: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (6 Of 9)
GTY1105472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Exhaust Heat Recirculation System - -
*1 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) *2 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

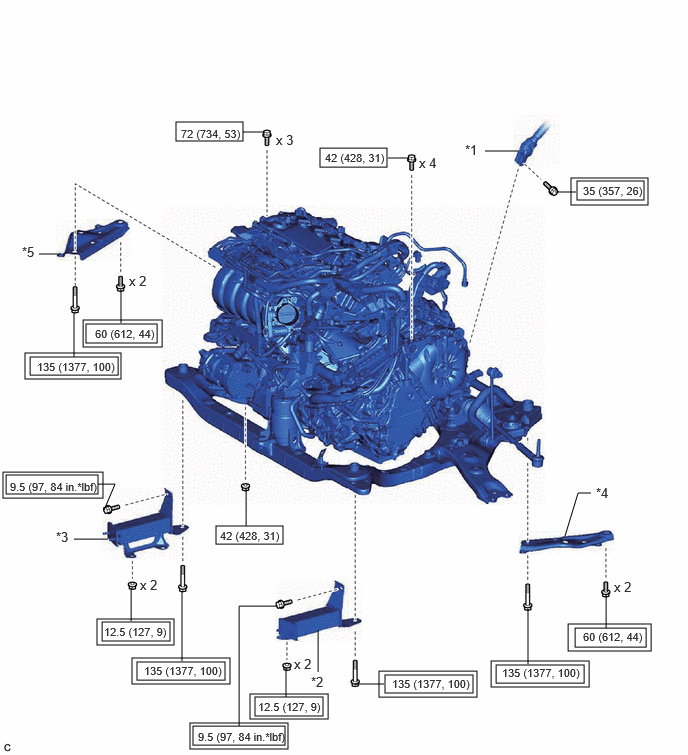

Fig 7: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (7 Of 9)
GTY1181137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING INTERMEDIATE SHAFT ASSEMBLY *2 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH
*3 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH *4 FRONT SUSPENSION MEMBER BRACE REAR LH
*5 FRONT SUSPENSION MEMBER BRACE REAR RH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

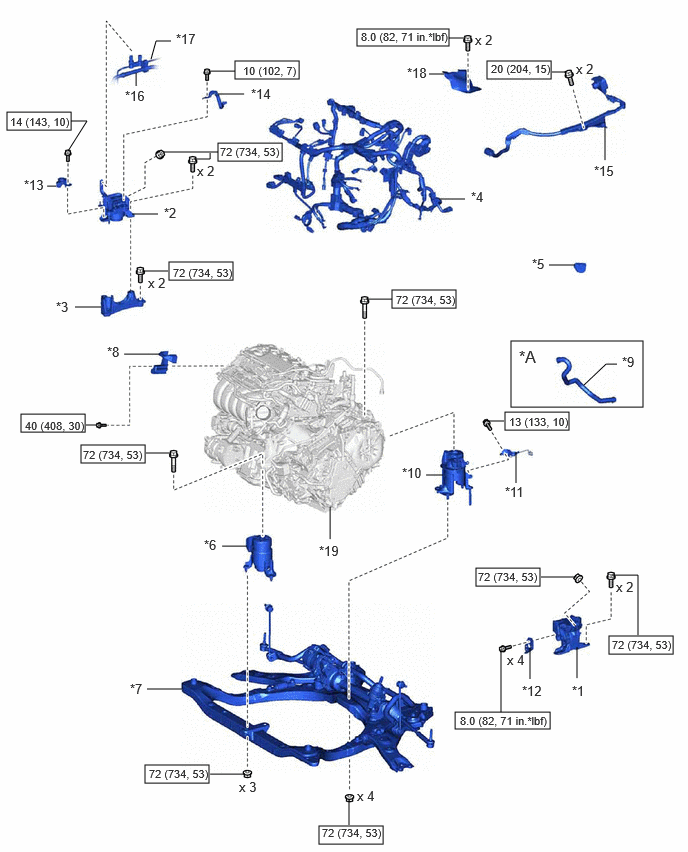

Fig 8: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (8 Of 9)
GTY1180636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Exhaust Heat Recirculation System - -
*1 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY LH *2 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3 ENGINE MOUNTING SPACER *4 ENGINE WIRE
*5 FLYWHEEL HOUSING UNDER COVER *6 FRONT ENGINE MOUNTING INSULATOR
*7 FRONT FRAME ASSEMBLY *8 FUEL DELIVERY GUARD
*9 HEATER WATER HOSE *10 REAR ENGINE MOUNTING INSULATOR
*11 WIRE HARNESS CLAMP *12 ENGINE MOUNTING STAY LH
*13 NO. 1 INVERTER RESERVE TANK BRACKET *14 NO. 2 EARTH WIRE
*15 HV AIR CONDITIONING WIRE *16 SUCTION PIPE SUB-ASSEMBLY
*17 AIR CONDITIONING TUBE ASSEMBLY *18 STEERING GEAR HEAT INSULATOR
*19 ENGINE ASSEMBLY WITH TRANSAXLE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

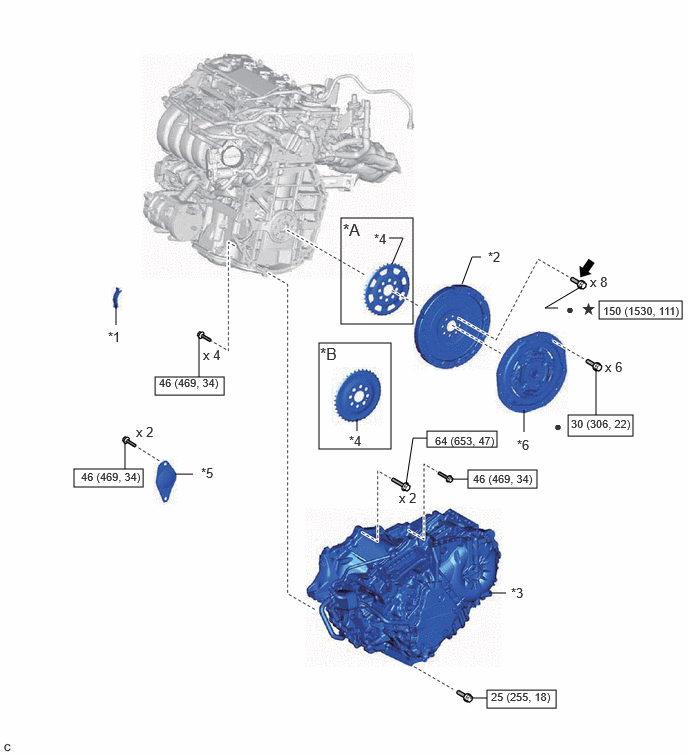

Fig 9: Engine Assembly Replacement Components With Torque Specifications [11/2023 - ] (9 Of 9)
GTY1181043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 FLYWHEEL HOUSING SIDE COVER *2 FLYWHEEL SUB-ASSEMBLY
*3 HYBRID VEHICLE TRANSAXLE ASSEMBLY *4 NO. 1 CRANKSHAFT POSITION SENSOR PLATE
*5 STARTER HOLE INSULATOR *6 TRANSMISSION INPUT DAMPER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part
