Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    See step  1

  2. REMOVE OIL PRESSURE AND TEMPERATURE SENSOR
    1. Disconnect the oil pressure and temperature sensor connector.

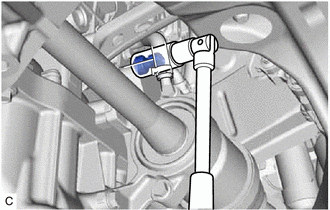

    2. Using a 24 mm deep socket wrench, remove the oil pressure and temperature sensor.
      GTY932506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the oil pressure and temperature sensor is dropped or subjected to a strong impact, replace it with a new one.
