Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 12 [11/2023 - ]

  2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

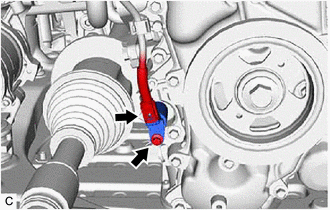

    1. Disconnect the oil pressure control valve assembly connector.
      GTY888562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the timing chain cover assembly.
