Removal [10/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 26 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 26 [11/2023 - ]

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

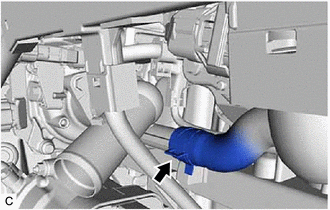

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

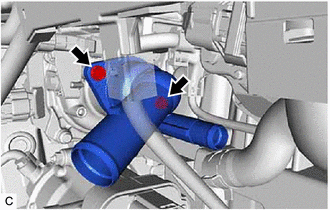

Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

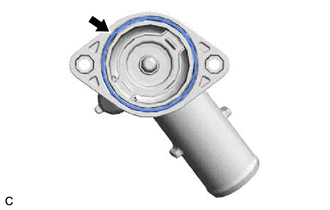

Remove the gasket from the water inlet with thermostat sub-assembly.
