Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    See step  1

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  3. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 2 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 2 [11/2023 - ]

  4. REMOVE OIL COOLER ASSEMBLY

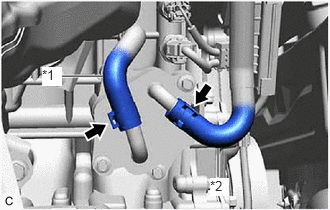

    1. Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the oil cooler assembly.
      GTY856571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose

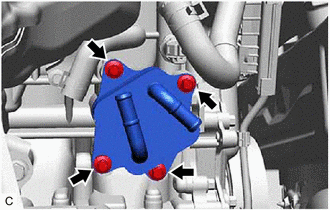

    2. Remove the 4 bolts and oil cooler assembly from the cylinder block sub-assembly.
      GTY925631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 oil cooler gaskets from the oil cooler assembly.
      GTY925630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Filter:

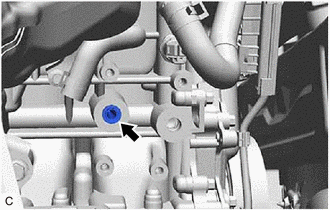

      1. Remove the oil control valve filter from the cylinder block sub-assembly.
        GTY925629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
