Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 57

  3. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 58

  4. REMOVE ENGINE OIL LEVEL SENSOR

    See step  4

  5. REMOVE OIL PUMP BRACKET

    Refer to PROCEDURE - Step 60

  6. REMOVE ENGINE BALANCER ASSEMBLY

    Refer to PROCEDURE - Step 62

  7. REMOVE OIL PUMP ASSEMBLY

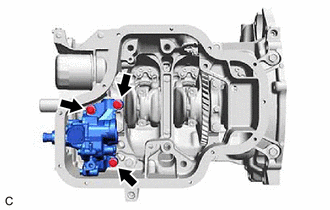

    1. Remove the 3 bolts and oil pump assembly from the stiffening crankcase assembly.
      GTY754233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STIFFENING CRANKCASE ASSEMBLY

    Refer to PROCEDURE - Step 64
