Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

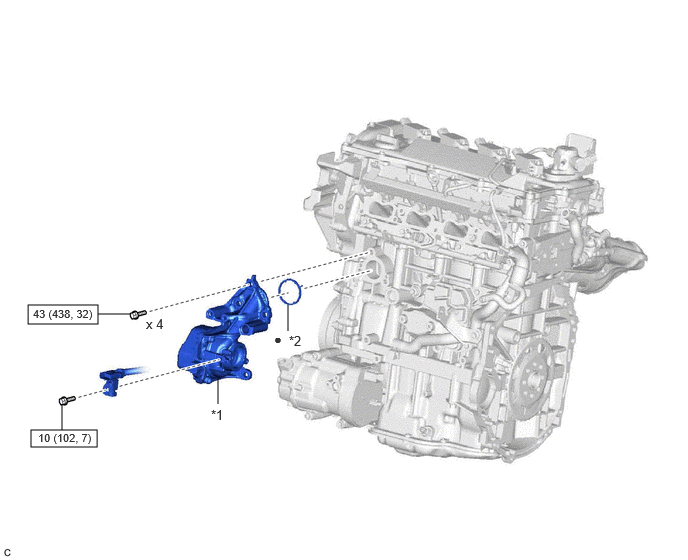

Fig 1: Water Pump Replacement Components With Torque Specifications
GTY750819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) *2 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
