Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - ]

  2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - ]

  3. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

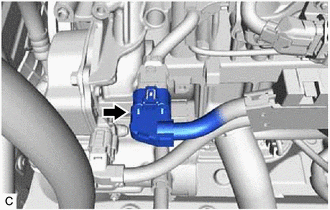

    1. Disconnect the sensor wire connector.
      GTY880891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

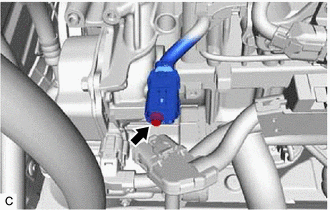

    2. Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).
      GTY880892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

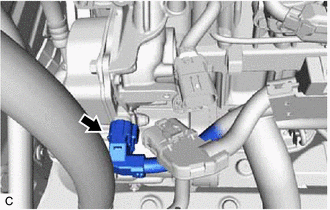

    3. Disconnect the engine water pump assembly (water inlet housing) connector.
      GTY880889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

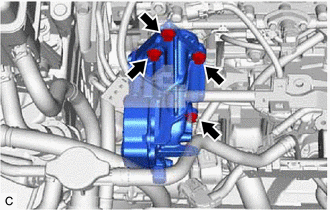

    4. Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.
      GTY880881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the gasket from the engine water pump assembly (water inlet housing).
      GTY771403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
