Installation [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
    1. Install a new gasket to the engine water pump assembly (water inlet housing).

      HINT:

      Be sure to clean the contact surfaces.

    2. Install the engine water pump assembly (water inlet housing) to the cylinder block assembly with the 4 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    3. Connect the engine water pump assembly (water inlet housing) connector.
    4. Align the protrusion of the engine water pump assembly (water inlet housing) with the cutout in the sensor wire clamp.

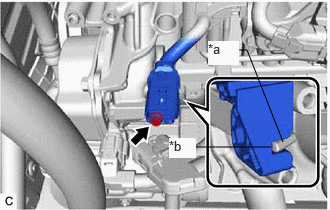

      GTY934052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Cutout
    5. Using an 8 mm socket wrench, connect the sensor wire to the engine water pump assembly (water inlet housing) with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    6. Connect the sensor wire connector.
  2. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2021] , or refer to INSTALLATION [10/2021 - ]

  3. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [12/2019 - 10/2021] , or refer to INSTALLATION [10/2021 - ]
