Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

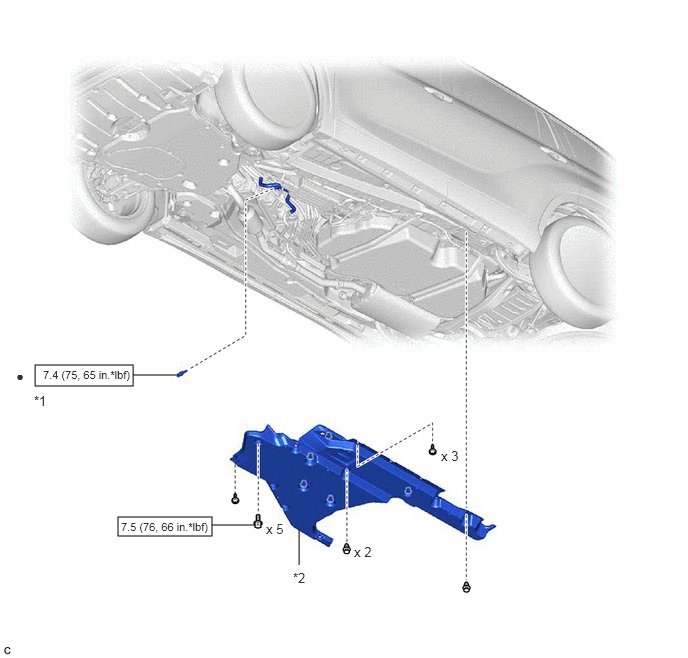

Fig 1: Temperature Switch Replacement Components With Torque Specifications
GTY847831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TEMPERATURE SWITCH *2 FRONT FLOOR COVER LH
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
