Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  3. REMOVE TEMPERATURE SWITCH

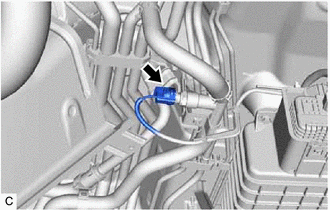

    1. Disconnect the temperature switch connector.
      GTY880169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

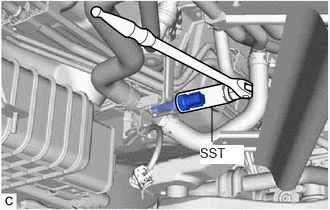

    2. Using SST, remove the temperature switch from the water pipe joint.
      GTY863880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-33191
      NOTE:

      Do not apply any excessive force to the heater pipe when removing the temperature switch.
