Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

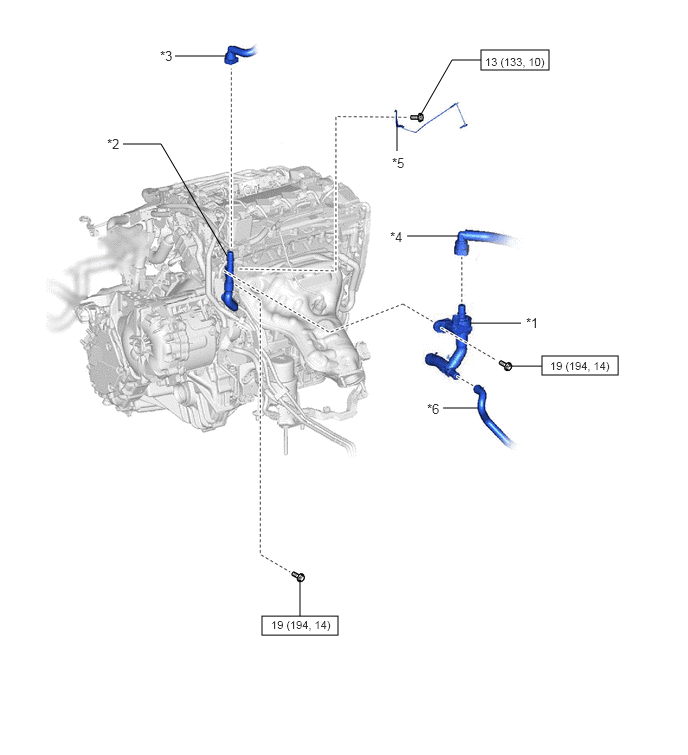

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) | *2 | NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY |
| *3 | OUTLET HEATER WATER HOSE B | *4 | INLET HEATER WATER HOSE B |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | HEATER WATER HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
