Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

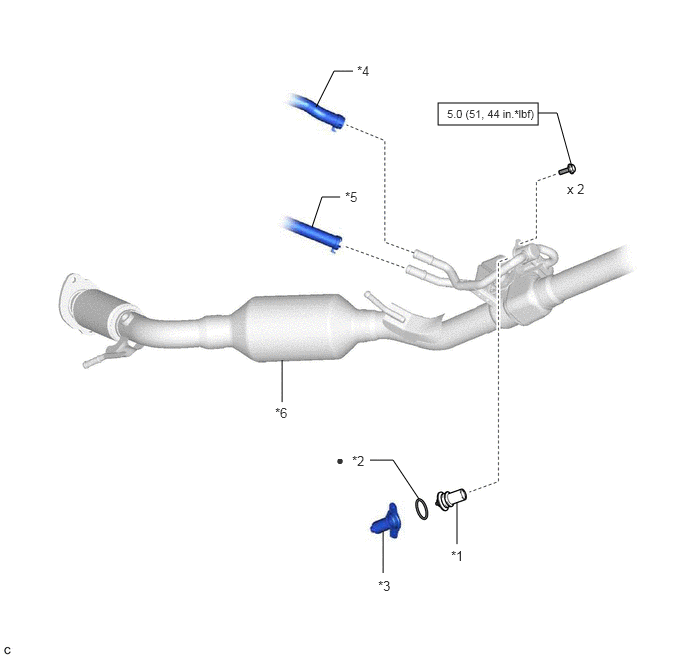

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | EXHAUST PIPE GAS CONTROL ACTUATOR | *2 | EXHAUST PIPE GAS CONTROL ACTUATOR GASKET |
| *3 | EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY | *4 | OUTLET HEATER WATER HOSE D |
| *5 | INLET HEATER WATER HOSE D | *6 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
