Components [12/2019 - 10/2021]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

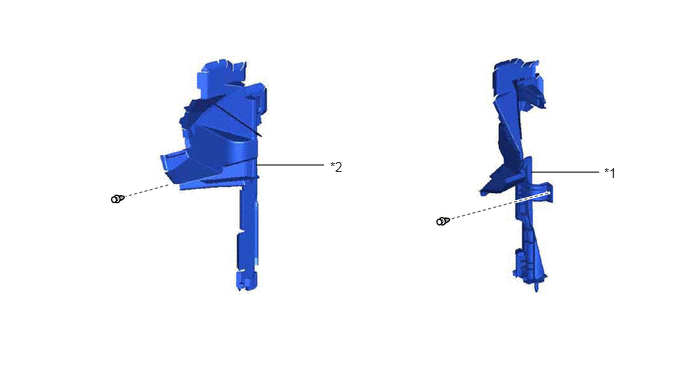

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 RADIATOR AIR GUIDE LH | *2 | NO. 1 RADIATOR AIR GUIDE RH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HOOD LOCK ASSEMBLY | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | INLET HOSE | *4 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *5 | HOOD LOCK NUT CAP | *6 | NO. 2 RADIATOR AIR GUIDE |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOWER RADIATOR SUPPORT | *2 | RADIATOR SUPPORT CUSHION |
| *3 | NO. 1 RADIATOR HOSE | *4 | NO. 2 RADIATOR HOSE |
| *5 | NO. 3 RADIATOR HOSE | *6 | NO. 4 INVERTER COOLING HOSE |
| *7 | NO. 5 INVERTER COOLING HOSE | *8 | NO. 4 WATER BY-PASS HOSE |
| *9 | NO. 6 WATER BY-PASS HOSE | *10 | RADIATOR ASSEMBLY |
| *11 | FAN WITH MOTOR ASSEMBLY | - | - |
