Components [10/2021 - ]

WARNING: This page is about a different variant/trim than selected.

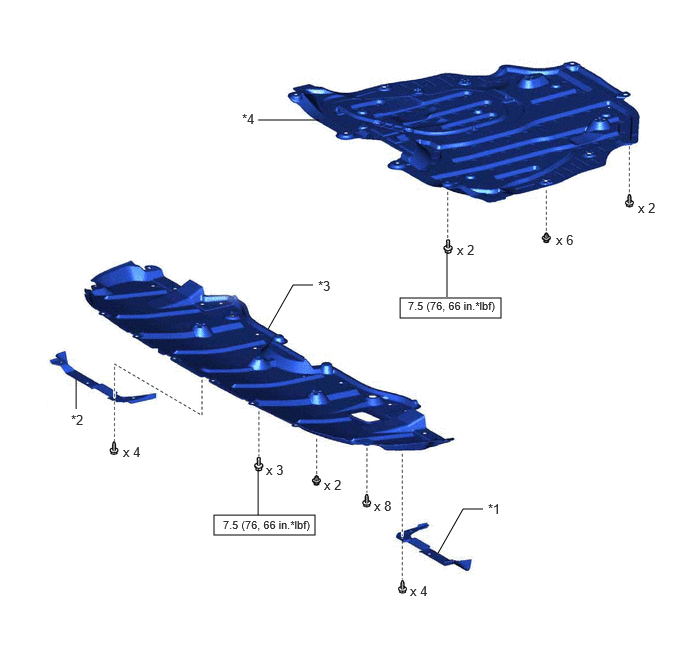

Fig 1: Radiator Replacement Components With Torque Specifications [10/2021 - ] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

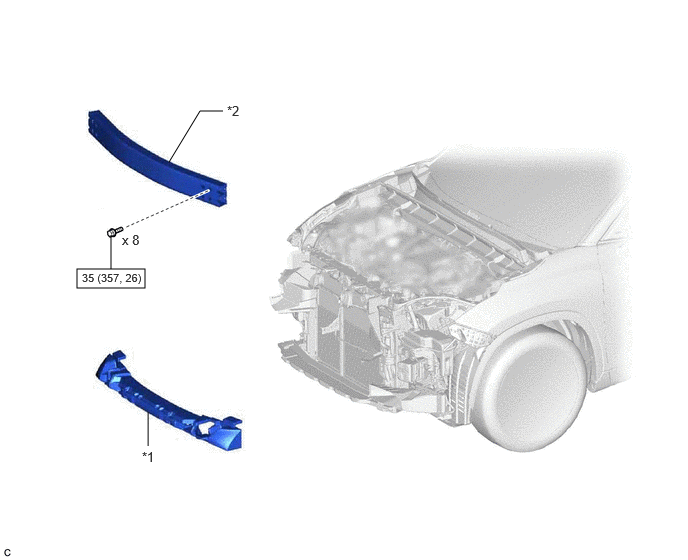

Fig 2: Radiator Replacement Components With Torque Specifications [10/2021 - ] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

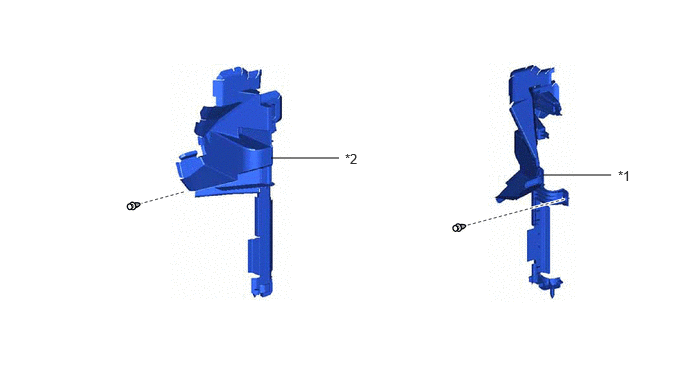

Fig 3: Radiator Replacement Components [10/2021 - ] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 RADIATOR AIR GUIDE LH	*2	NO. 1 RADIATOR AIR GUIDE RH

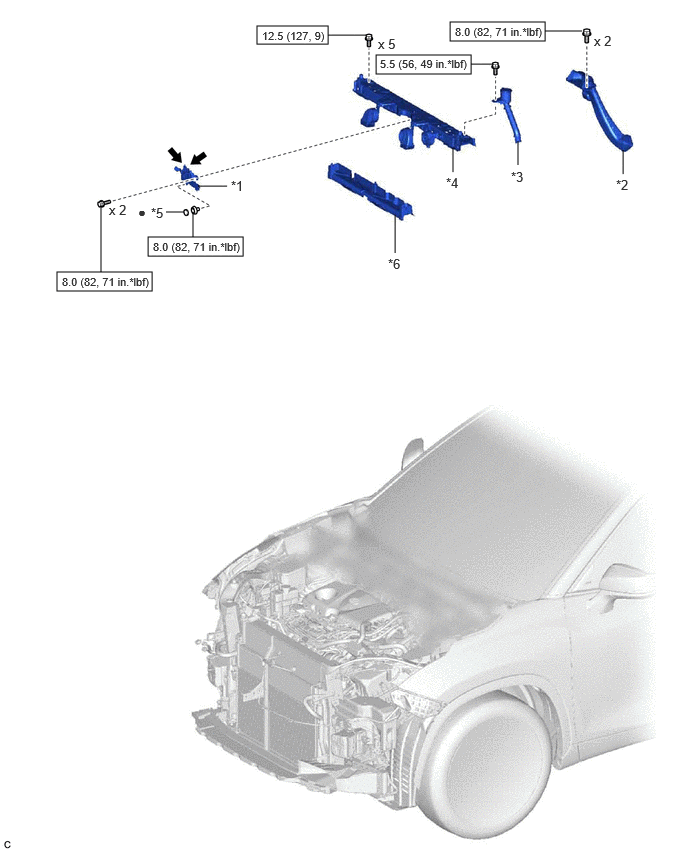

Fig 4: Radiator Replacement Components With Torque Specifications [10/2021 - ] (4 Of 5)

Callout	Description	Callout	Description
*1	HOOD LOCK ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	INLET HOSE	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK NUT CAP	*6	NO. 2 RADIATOR AIR GUIDE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

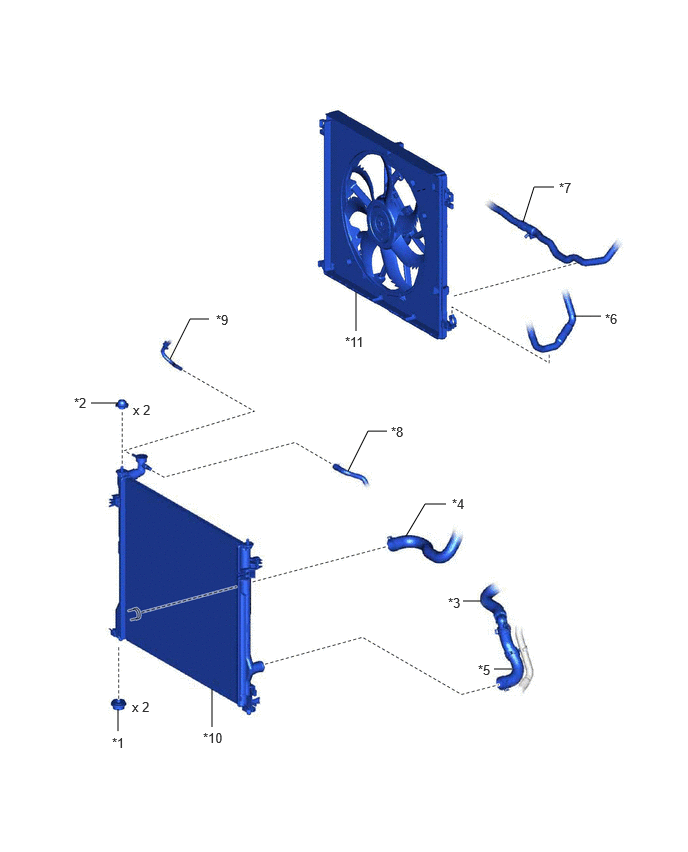

Fig 5: Radiator Replacement Components With Torque Specifications [10/2021 - ] (5 Of 5)

Callout	Description	Callout	Description
*1	LOWER RADIATOR SUPPORT	*2	RADIATOR SUPPORT CUSHION
*3	NO. 1 RADIATOR HOSE	*4	NO. 2 RADIATOR HOSE
*5	NO. 3 RADIATOR HOSE	*6	NO. 4 INVERTER COOLING HOSE
*7	NO. 5 INVERTER COOLING HOSE	*8	NO. 4 WATER BY-PASS HOSE
*9	NO. 6 WATER BY-PASS HOSE	*10	RADIATOR ASSEMBLY
*11	FAN WITH MOTOR ASSEMBLY	-	-
