Inspection [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT CYLINDER HEAD SUB-ASSEMBLY

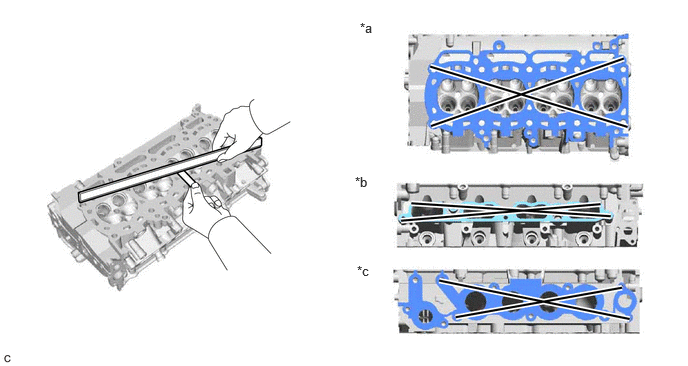

    1. Using a precision straightedge and feeler gauge, measure the warpage of the contact surfaces where the cylinder head sub-assembly contacts the cylinder block sub-assembly, intake manifold and exhaust manifold (TWC: Front Catalyst).
      GTY771196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bottom Side *b Intake Manifold Side
      *c Exhaust Manifold (TWC: Front Catalyst) Side - -

      Maximum Warpage

      Item Specified Condition
      Bottom side 0.05 mm (0.00197 in.)
      Intake manifold side 0.10 mm (0.00394 in.)
      Exhaust manifold (TWC: Front Catalyst) side 0.10 mm (0.00394 in.)

      HINT:

      If the warpage is more than the maximum, replace the cylinder head sub-assembly.

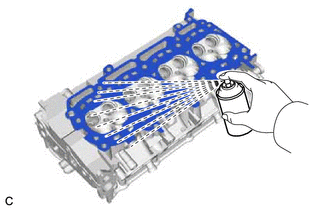

    2. Using a dye penetrant, check the intake ports, exhaust ports and cylinder head sub-assembly surface for cracks.
      GTY756887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If cracks are found, replace the cylinder head sub-assembly.

  2. INSPECT INTAKE VALVE COMPRESSION SPRING
    1. Using a vernier caliper, measure the free length of the intake valve compression spring.
      GTY756890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Free Length

      58.81 mm (2.32 in.)

      HINT:

      If the free length is not as specified, replace the intake valve compression spring.

    2. Using a steel square, measure the deviation of the intake valve compression spring.
      GTY757686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Deviation
      *b 42.0 mm (1.65 in.)

      Maximum Deviation (Reference)

      1.0 mm (0.0394 in.)

      HINT:

      If the deviation is more than the maximum, replace the intake valve compression spring.

  3. INSPECT EXHAUST VALVE COMPRESSION SPRING
    1. Using a vernier caliper, measure the free length of the exhaust valve compression spring.

      Standard Free Length

      61.08 mm (2.40 in.)

      GTY756890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the free length is not as specified, replace the exhaust valve compression spring.

    2. Using a steel square, measure the deviation of the exhaust valve compression spring.

      Maximum Deviation (Reference)

      1.0 mm (0.0394 in.)

      GTY757686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Deviation
      *b 44.0 mm (1.73 in.)

      HINT:

      If the deviation is more than the maximum, replace the exhaust valve compression spring.

  4. INSPECT INTAKE VALVE
    1. Using a micrometer, measure the diameter of the intake valve stem.
      GTY756892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Valve Stem Diameter

      5.470 to 5.485 mm (0.215 to 0.216 in.)

      HINT:

      If the intake valve stem diameter is not as specified, check the intake valve guide bush oil clearance.

    2. Using a vernier caliper, measure the intake valve head margin thickness.
      GTY761889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Margin Thickness

      Standard Margin Thickness

      1.0 mm (0.0394 in.)

      Minimum Margin Thickness

      0.5 mm (0.0197 in.)

      HINT:

      If the margin thickness is less than the minimum, replace the intake valve.

    3. Using a vernier caliper, measure the overall length of the intake valve.
      GTY767342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Overall Length

      Standard Overall Length

      104.45 mm (4.11 in.)

      Minimum Overall Length

      103.95 mm (4.09 in.)

      HINT:

      If the overall length is less than the minimum, replace the intake valve.

  5. INSPECT EXHAUST VALVE
    1. Using a micrometer, measure the diameter of the exhaust valve stem.
      GTY948113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Valve Stem Diameter

      5.465 to 5.480 mm (0.215 to 0.216 in.)

      HINT:

      If the exhaust valve stem diameter is not as specified, check the exhaust valve guide bush oil clearance.

    2. Using a vernier caliper, measure the exhaust valve head margin thickness.
      GTY743223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Margin Thickness

      Standard Margin Thickness

      1.0 mm (0.0394 in.)

      Minimum Margin Thickness

      0.5 mm (0.0197 in.)

      HINT:

      If the margin thickness is less than the minimum, replace the exhaust valve.

    3. Using a vernier caliper, measure the overall length of the exhaust valve.
      GTY768815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Overall Length

      Standard Overall Length

      108.7 mm (4.28 in.)

      Minimum Overall Length

      108.2 mm (4.26 in.)

      HINT:

      If the overall length is less than the minimum, replace the exhaust valve.

  6. INSPECT VALVE GUIDE BUSH OIL CLEARANCE

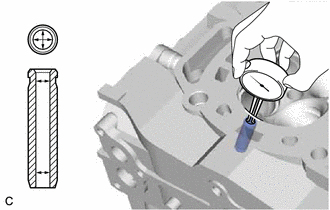

    1. Using a caliper gauge, measure the inside diameter of the valve guide bush.
      GTY756875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Valve Guide Bush Inside Diameter

      5.51 to 5.53 mm (0.217 to 0.218 in.)

    2. Subtract the valve stem diameter measurement from the valve guide bush inside diameter measurement.

      Standard Oil Clearance

      Item Specified Condition
      Intake Side 0.025 to 0.060 mm (0.000984 to 0.00236 in.)
      Exhaust Side 0.030 to 0.065 mm (0.00118 to 0.00256 in.)

      Maximum Oil Clearance

      Item Specified Condition
      Intake Side 0.080 mm (0.00315 in.)
      Exhaust Side 0.10 mm (0.00394 in.)

      HINT:

      • Oil clearance = Valve guide bush inside diameter - Valve stem diameter
      • If the oil clearance is more than the maximum, replace the valve and valve guide bush.
  7. INSPECT INTAKE VALVE SEAT

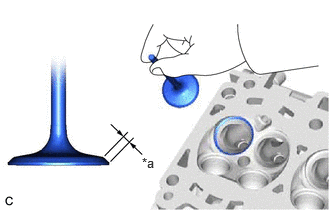

    1. Apply a light coat of Prussian blue to the valve face.
    2. Lightly press the valve face against the intake valve seat.
      GTY744967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Width
      NOTE:

      Do not rotate the valve while pressing it.

    3. Check the valve face and intake valve seat by using the following procedure:
      1. If Prussian blue appears 360° around the entire intake valve face, the valve face is concentric.

        HINT:

        If the valve face is not concentric, replace the intake valve.

      2. If Prussian blue appears 360° around the entire intake valve seat, the intake valve seat and valve face are concentric.

        HINT:

        If the valve face is not concentric, replace the cylinder head sub-assembly.

      3. Measure the width of the contact area of the intake valve seat and valve face.

        Standard Width

        1.0 to 1.4 mm (0.0394 to 0.0551 in.)

  8. INSPECT EXHAUST VALVE SEAT

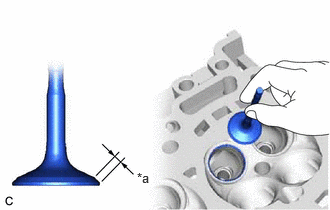

    1. Apply a light coat of Prussian blue to the valve face.
    2. Lightly press the valve face against the exhaust valve seat.
      GTY751423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Width
      NOTE:

      Do not rotate the valve while pressing it.

    3. Check the valve face and exhaust valve seat by using the following procedure:
      1. If Prussian blue appears 360° around the entire exhaust valve face, the valve face is concentric.

        HINT:

        If the valve face is not concentric, replace the exhaust valve.

      2. If Prussian blue appears 360° around the entire exhaust valve seat, the exhaust valve seat and valve face are concentric.

        HINT:

        If the valve face is not concentric, resurface the exhaust valve seat.

      3. Measure the width of the contact area of the exhaust valve seat and valve face.

        Standard Width

        1.3 to 1.7 mm (0.0512 to 0.0669 in.)

  9. INSPECT CAMSHAFT THRUST CLEARANCE
    1. Clean the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap, 2 No. 3 camshaft bearing caps, No. 4 camshaft bearing cap, camshaft housing sub-assembly and camshaft journals.
    2. Place the camshaft and No. 2 camshaft on the camshaft housing sub-assembly on the cylinder head sub-assembly.
    3. Install the camshaft bearing caps.

      See step  23 [12/2019 - 10/2021], or see step  23 [10/2021 - 11/2023], or see step  23 [11/2023 - ]

    4. Install the camshaft housing sub-assembly.

      See step  27 [12/2019 - 10/2021], or see step  27 [10/2021 - 11/2023], or see step  27 [11/2023 - ]

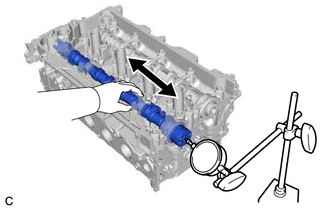

    5. Using a dial indicator, measure the thrust clearance while moving the camshaft and No. 2 camshaft back and forth.
      GTY756881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Thrust Clearance

      Item Specified Condition
      Camshaft 0.04 to 0.17 mm (0.00157 to 0.00669 in.)
      No. 2 Camshaft 0.04 to 0.17 mm (0.00157 to 0.00669 in.)

      Maximum Thrust Clearance

      Item Specified Condition
      Camshaft 0.22 mm (0.00866 in.)
      No. 2 Camshaft 0.22 mm (0.00866 in.)

      HINT:

      If the thrust clearance is more than the maximum, replace the camshaft housing sub-assembly. If the thrust surface is damaged, replace the camshaft.
