Replacement [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REPLACE RING PIN
    NOTE:

    It is not necessary to remove the ring pins unless they are being replaced.

    1. Remove the 12 ring pins.
    2. Using a plastic hammer, install 12 new ring pins.

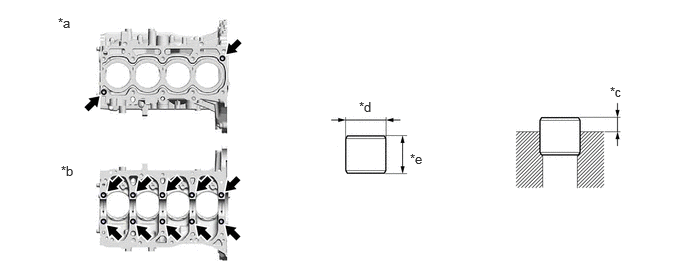

      GTY758988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Top Side *b Bottom Side
      *c Protrusion Height *d 14 mm (0.551 in.)
      *e 12 mm (0.472 in.) - -

      Standard Protrusion Height

      5.0 to 7.0 mm (0.197 to 0.276 in.)

  2. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pins unless they are being replaced.

    1. Remove the 11 straight pins.
    2. Using a plastic hammer, install 11 new straight pins.

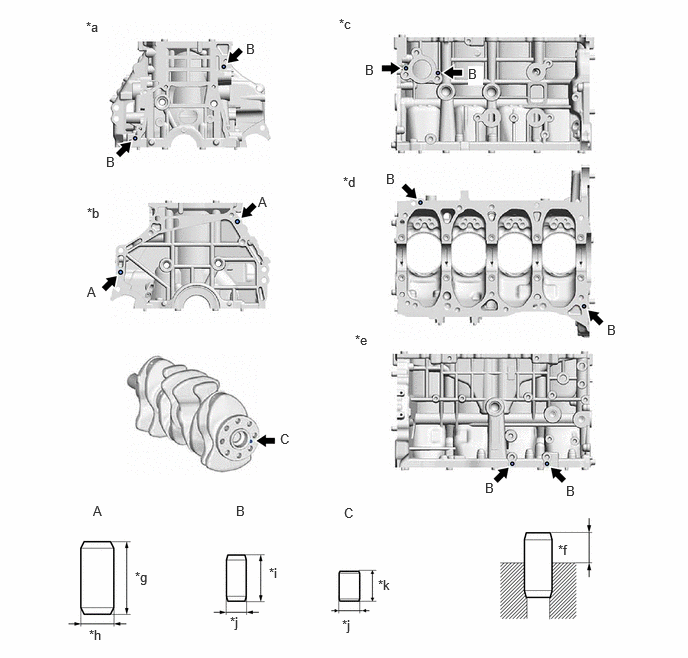

      GTY1181185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Side *b Rear Side
      *c LH Side *d Bottom Side
      *e RH Side *f Protrusion Height
      *g 22 mm (0.866 in.) *h 10 mm (0.394 in.)
      *i 14 mm (0.551 in.) *j 6.0 mm (0.236 in.)
      *k 7.4 mm (0.291 in.) - -

      Standard Protrusion Height

      Straight Pin Specified Condition
      (A) 11.0 to 13.0 mm (0.433 to 0.512 in.)
      (B) 5.0 to 7.0 mm (0.197 to 0.276 in.)
      (C) 1.2 to 2.2 mm (0.0472 to 0.0866 in.)
