Components [12/2019 - ]

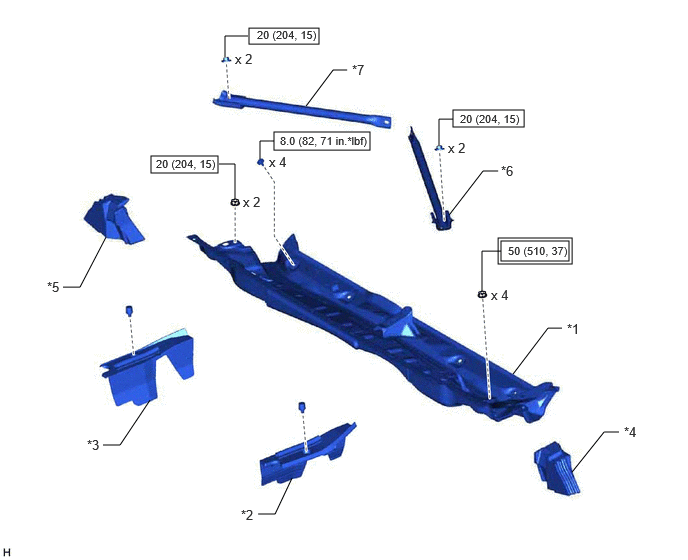

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL VENTILATOR PANEL SUB-ASSEMBLY	*2	FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH
*3	FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH	*4	FRONT FENDER SPLASH SHIELD SEAL FRONT LH
*5	FRONT FENDER SPLASH SHIELD SEAL FRONT RH	*6	FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH
*7	FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

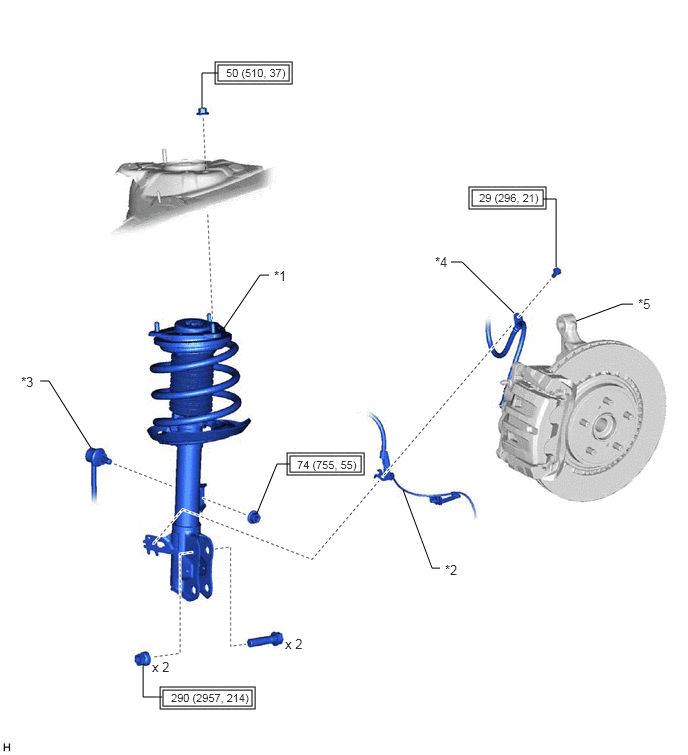

Fig 2: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SHOCK ABSORBER WITH COIL SPRING	*2	FRONT SPEED SENSOR
*3	FRONT STABILIZER LINK ASSEMBLY	*4	FRONT FLEXIBLE HOSE
*5	STEERING KNUCKLE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

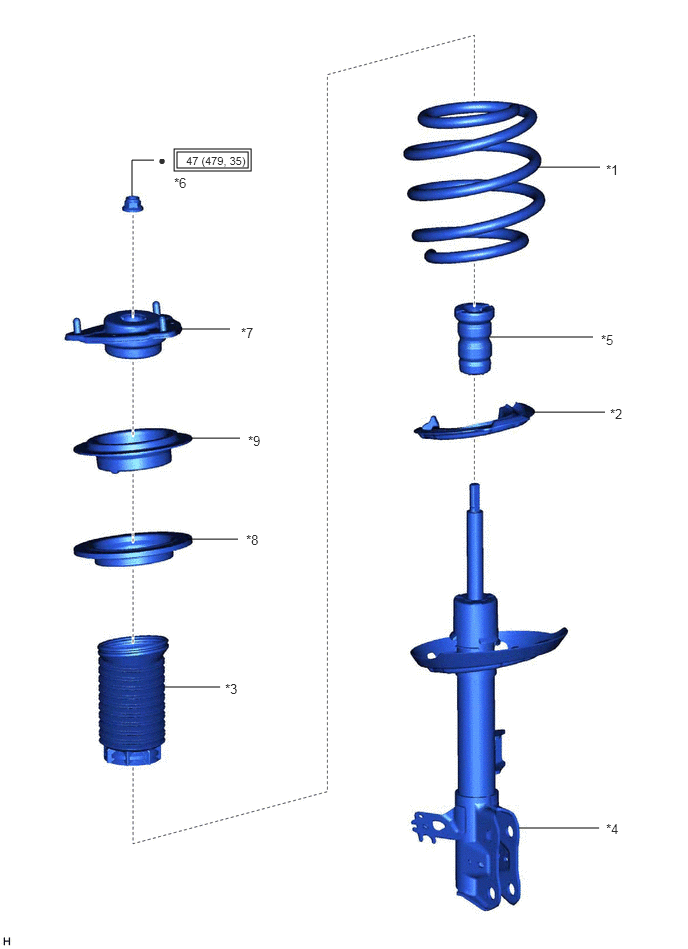

Fig 3: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	FRONT COIL SPRING	*2	FRONT LOWER COIL SPRING INSULATOR
*3	FRONT NO. 1 SHOCK ABSORBER DUST COVER	*4	FRONT SHOCK ABSORBER ASSEMBLY
*5	FRONT SPRING BUMPER	*6	FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
*7	FRONT SUSPENSION SUPPORT SUB-ASSEMBLY	*8	FRONT UPPER COIL SPRING INSULATOR
*9	STRUT MOUNTING BEARING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
