Components [12/2019 - 10/2022]

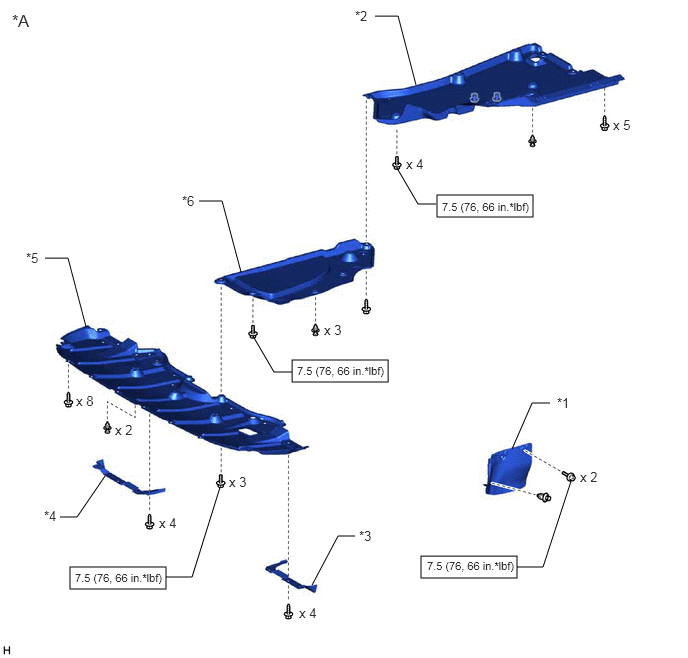

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for A25A-FXS | - | - |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FLOOR COVER LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

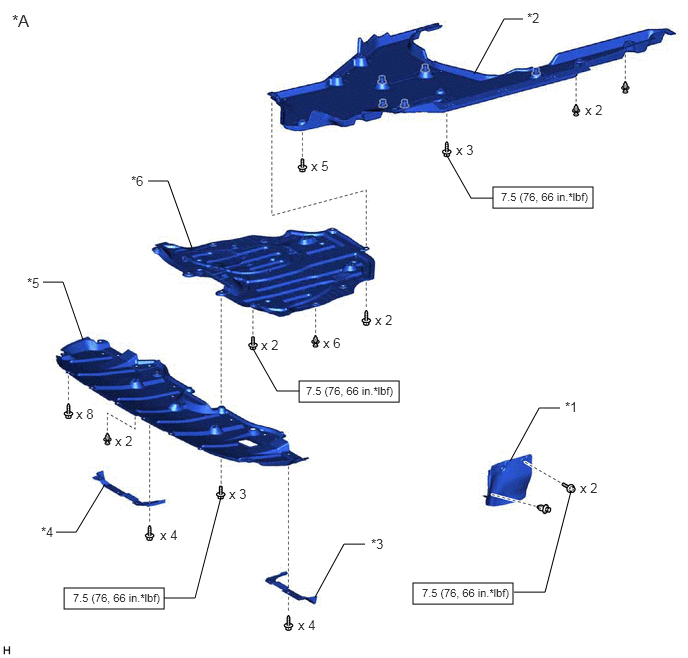

Fig 2: Front Lower Suspension Arm Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2GR-FKS | - | - |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FLOOR COVER LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | REAR ENGINE UNDER COVER LH |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Front Lower Suspension Arm Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *2 | FRONT LOWER ARM BUSHING STOPPER |
| *3 | FRONT FRAME ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
