Installation [10/2022 - ]: Procedure

  1. INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
    1. Install the front lower arm bushing stopper to the front lower No. 1 suspension arm sub-assembly.

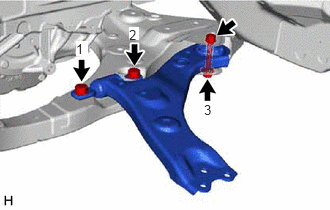

    2. Install the front lower No. 1 suspension arm sub-assembly to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.
      GTY873558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (1), (2)

      Torque: 200 N.m (2039 kgf/cm, 148 ft.lbf)

      Bolt (3)

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

    3. Connect the front lower No. 1 suspension arm sub-assembly to the front lower ball joint assembly with the bolt and 2 nuts.

      Torque: 92 N.m (938 kgf/cm, 68 ft.lbf)

  2. INSTALL FRONT FENDER APRON SEAL LH (for LH Side)

    for A25A-FXS: Refer to PROCEDURE - Step 60 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 58 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 82 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 82 [11/2023 - ]

  3. INSTALL FRONT FENDER APRON SEAL RH (for RH Side)

    for A25A-FXS: Refer to PROCEDURE - Step 61 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 59 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 83 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 83 [11/2023 - ]

  4. INSTALL FRONT FLOOR COVER LH (for LH Side)

    for A25A-FXS: Refer to PROCEDURE - Step 26 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 25 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 13

  5. INSTALL FRONT FLOOR COVER RH (for RH Side)

    for A25A-FXS: Refer to PROCEDURE - Step 27 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 26 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 81 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 81 [11/2023 - ]

  6. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    for A25A-FXS: Refer to PROCEDURE - Step 62 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 60 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 84 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 84 [11/2023 - ]

  7. INSTALL NO. 1 ENGINE UNDER COVER

    for A25A-FXS: Refer to PROCEDURE - Step 63 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 61 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 85 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 85 [11/2023 - ]

  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    for A25A-FXS: Refer to PROCEDURE - Step 64 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 62 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 86 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 86 [11/2023 - ]

  9. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    for A25A-FXS: Refer to PROCEDURE - Step 65 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 63 [11/2023 - ]

    for T24A-FTS: Refer to PROCEDURE - Step 87 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 87 [11/2023 - ]

  10. INSTALL FRONT WHEEL

    Refer to PROCEDURE - Step 1

  11. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [10/2022 - 11/2023] , or refer to ADJUSTMENT [11/2023 - 11/2024] , or refer to ADJUSTMENT [11/2024 - ]

  12. PERFORM INITIALIZATION
    Parking Assist Monitor System Refer to CALIBRATION [10/2022 - ]
    Panoramic View Monitor System Refer to CALIBRATION [10/2022 - 11/2023] , or refer to CALIBRATION [11/2023 - ]
    Lighting System (EXT) (w/ AFS) Refer to INITIALIZATION [12/2019 - 11/2023] , or refer to INITIALIZATION [11/2023 - ]
